How to use Remote Control

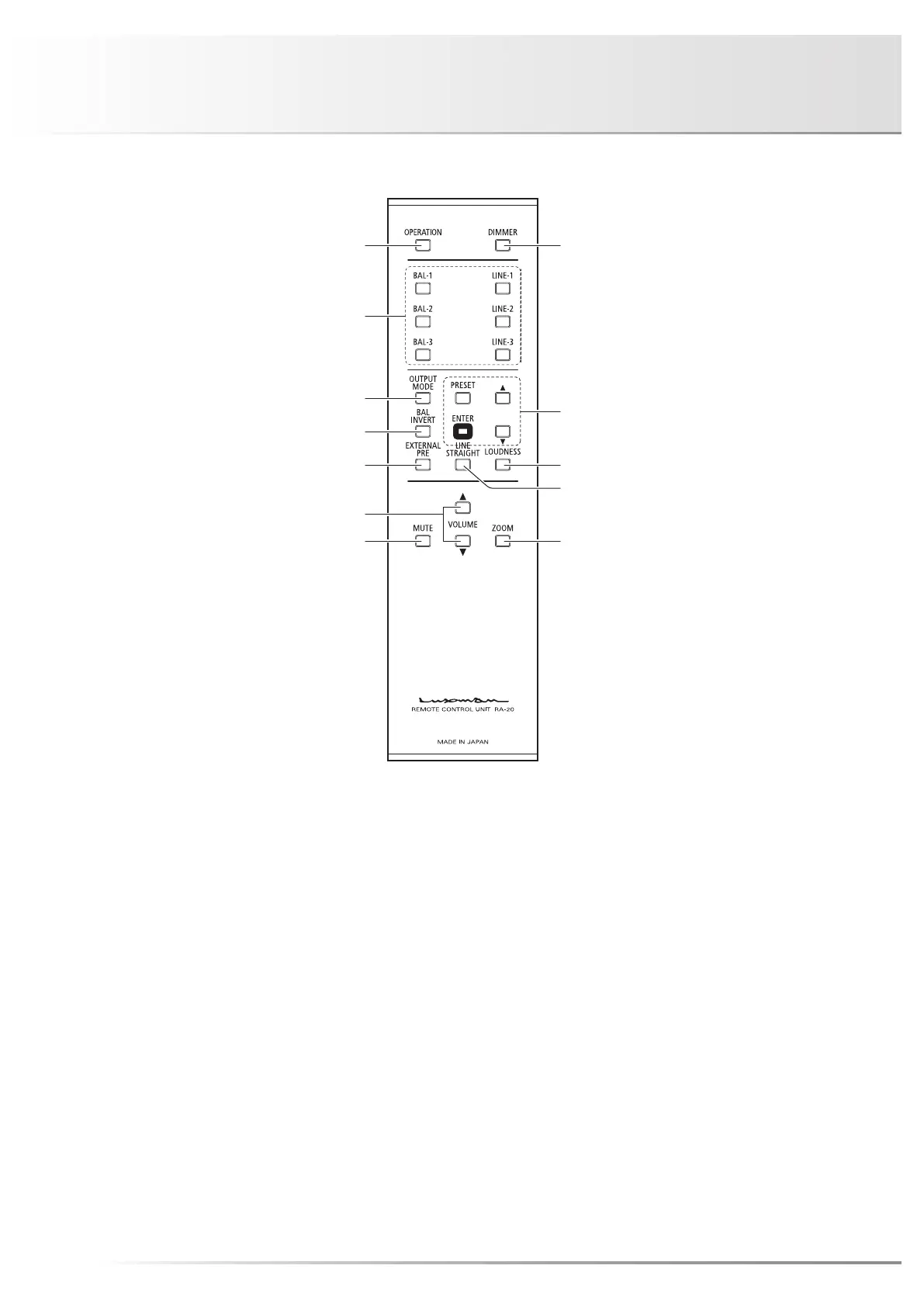

Remote controller (RA-20)
9
8
9. Preset button (PRESET),
Enter button (ENTER)
Determines the adjustment or the setting value.
▲ button (UP)
▼ button (DOWN)
Changes the level of adjustment or the setting.
How to preset the balanced phase
setting/BAL PHASE
The balanced phase of this unit can be set for each of input
and output.
(1) When the preset button is pressed, the unit enters the
preset mode and “BAL PHASE” starts blinking. (Display
on the 1st row of Fig. 1Ⓐ) When not changing the
balanced phase, press the preset button to exit the
preset mode.
(2) When the enter button is pressed, 3+ and 2– of BAL-1
starts blinking and the phase inversion setting of BAL
LINE-1 of the balanced input becomes available. (Display
on the 2nd row of Fig. 1Ⓐ)
When the enter button is pressed again, the display
goes to the phase inversion setting of BAL LINE-2 of the
balanced input.
(3) When ▲ or ▼ is pressed, the phase of BAL LINE-1 of
the balanced input is inverted and the display changes
to 3– and 2+. (Display on the 3rd row of Fig. 1Ⓐ)
When ▲ or ▼ is pressed again, the phase setting goes
back to 3+ and 2–.
