User Guide
6
© Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
Operating
Humidity
10% to 90%
(Non-condensing)
Dimensions
W: 6.8” x D: 4.3” x H: 1.2”
(W: 172.72mm x D:109.22mm x H: 30.5mm)
Weight
Item: 4.5 lbs (2.1Kg)
Packaging: 6 lbs (2.7Kg)
1.4 Package Contents
Please check the contents carefully after you open the packing:
XGS-1008 8-Port Gigabit Ethernet Switch
Power Adapter
Quick Install Guide
CD with User Documentation
If any of the listed items are missing or damaged, please contact the reseller from
whom you purchased the XGS-1008 for return/replacement.
2: HARDWARE DESCRIPTION
2.1 Front Panel
The front panel of the XGS-1008 includes 8 Link/Activity LED’s and one power LED.
Please refer to the detailed description of these indicators in Section 2.2 below.

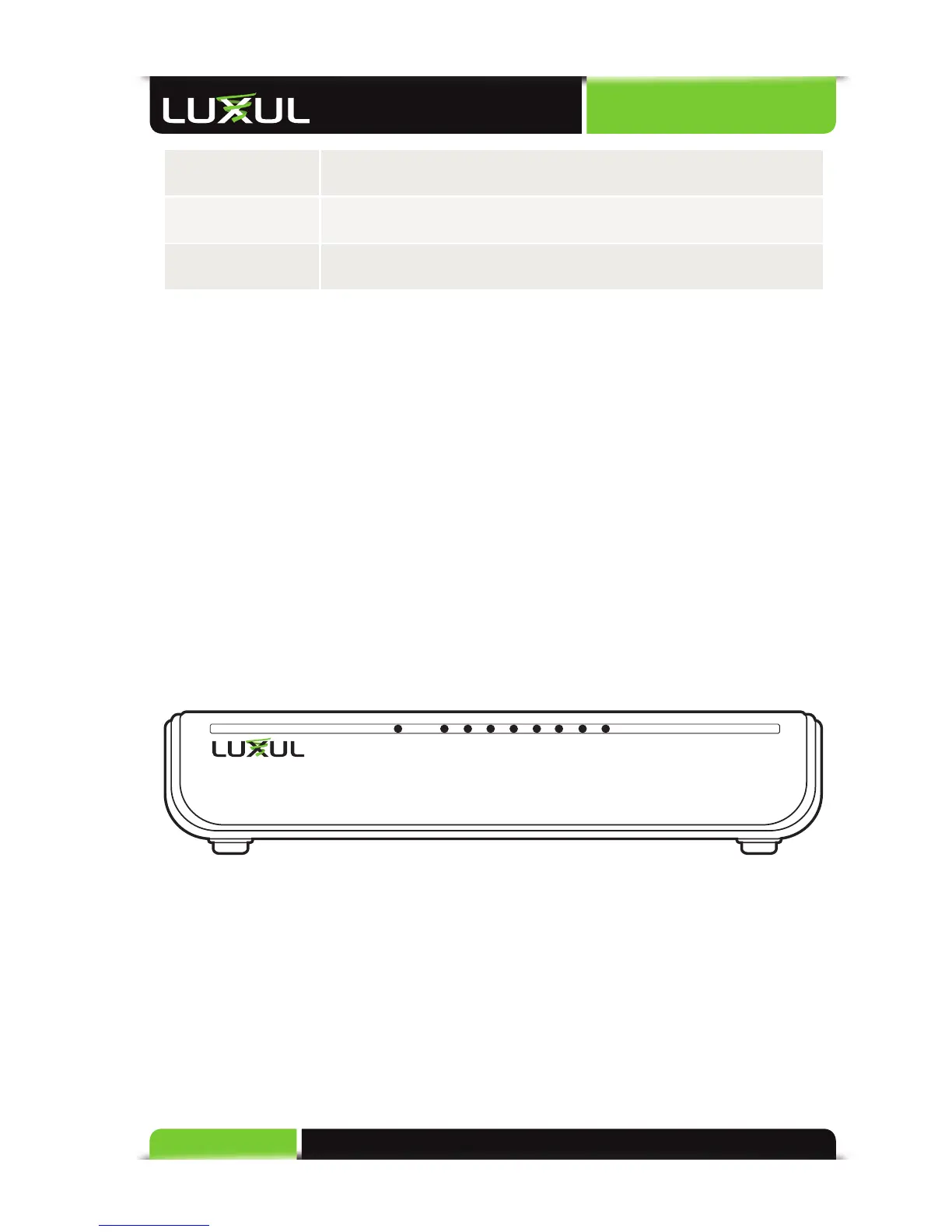

876 5 4 3 2 1POWER8-Port Gigabit Ethernet Switch
XGS-1008 Front Panel View
2.2 LED Indicators
The LED indicators of the XGS-1008 include 1 Power indicator and 8 Link/Activity
indicators. These LED indicators show the operating status of the XGS-1008 and
each switch connection.
The following chart shows the LED indicators of the XGS-1008 along with an
explanation of the indicator’s properties:
