User Guide
7
LED
Color Status Description
Power
Green ON This indicator lights up when the XGS-1008
is powered
—
OFF If this indicator is not lit, please check the
DC power supply to ensure proper connec-
tion to the outlet and the XGS-1008.
Link/
Activity
Green ON Indicates the XGS-1008 is connected at
1000Mbps.
Blinking Indicates the XGS-1008 is transmitting/
receiving data packets at 1000Mbps.
Orange ON Indicates the XGS-1008 is connected at
10/100Mbps.
Blinking Indicates the XGS-1008 is transmitting/
receiving data packets at 10/100Mbps.
—
OFF Indicates the port is not connected to a
device.

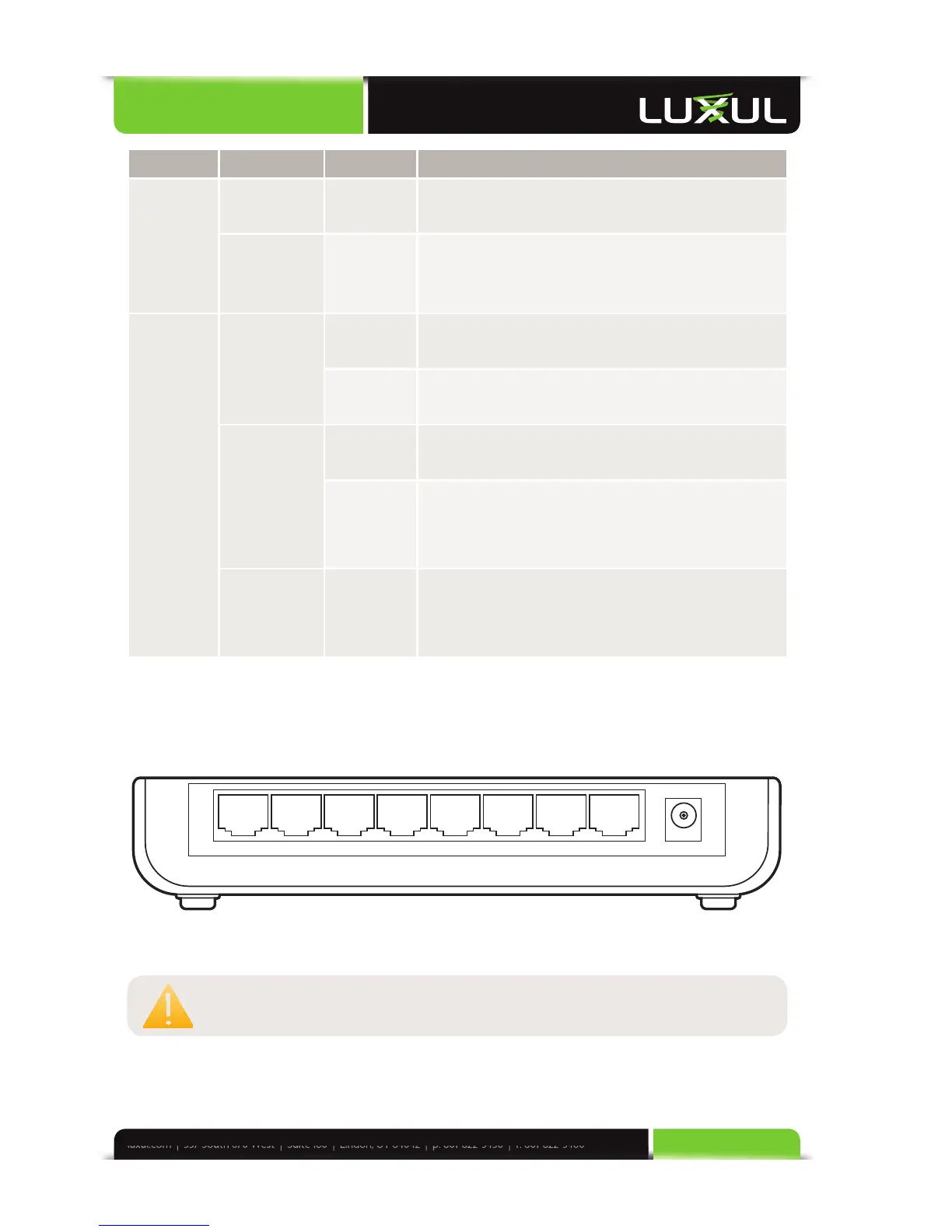

2.3 Rear Panel Layout
The Rear Panel of the XGS-1008 includes 8 10/100/1000Mbps RJ-45 Ethernet ports
and one DC power port used for DC power input.
12345678 POWER
XGS-1008 Rear Panel View
CAUTION: Please use the included power supply. If a different power
supply is used, it could damage the XGS-1008
