FlarmBat display Version 1.1 October 2018
Page 14 of 30

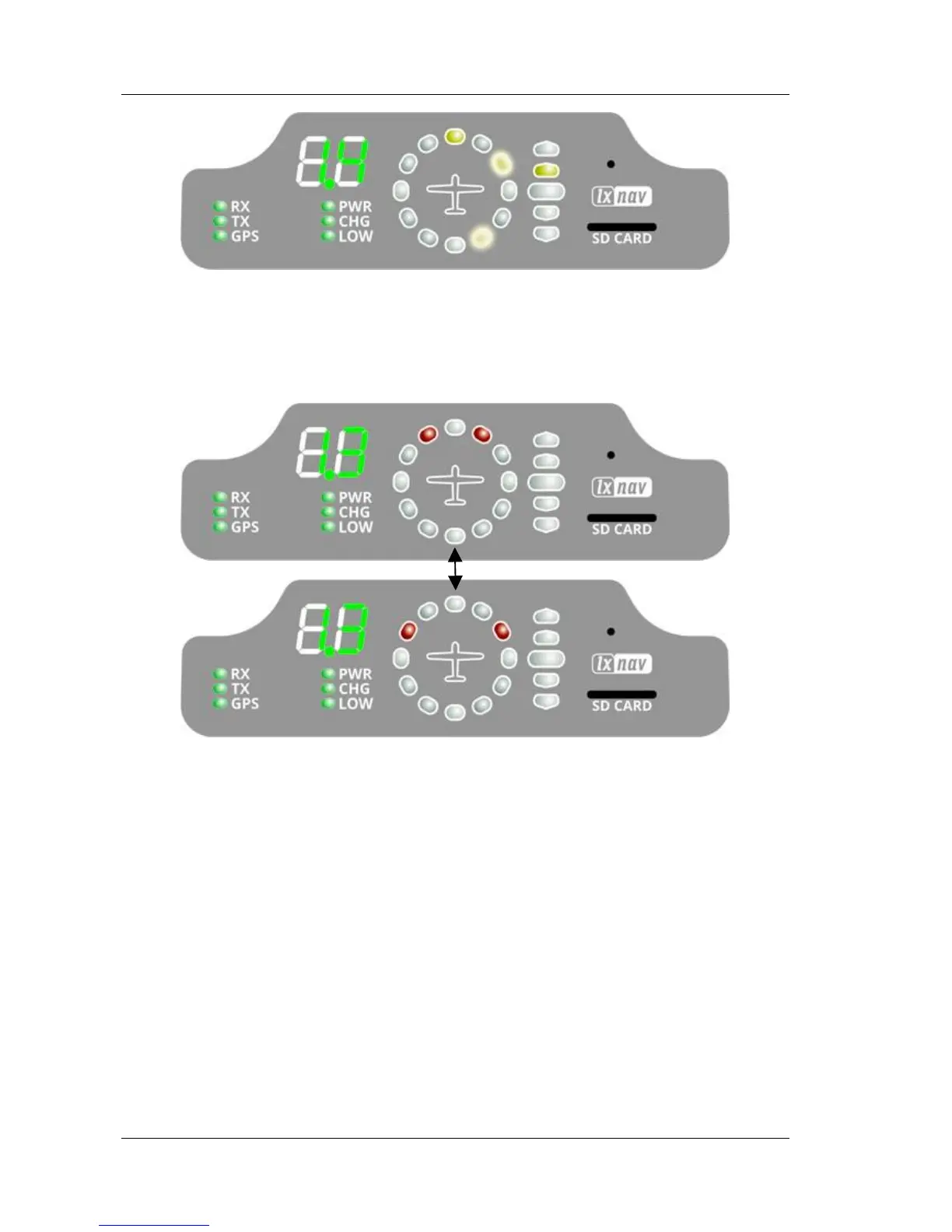

4.5.3 Obstacle warning
An obstacle warning will be activated, if an obstacle is to be found in the front of the glider
and a collision risk is predicted. The warning is shown with two red LEDs, symmetrical
around the 12 o´ clock LED at 10 and 2, they alternate with those at 11 and 1. As we
approach to the obstacle the frequency of the alternation increases.
4.5.4 Undirected PCAS warning
If the FlarmLED is connected to a device, which also translates transponder signals with
ADS-B data into Flarm warnings, you will receive them in the same logic as above.
Transponder signals without ADS-B data contain no direction for the thread therefore you
will get an undirected warning with the following alternating signals:
