FlarmBat display Version 1.1 October 2018
Page 18 of 30
4.7.6 Internal consistency check (6)
4.7.7 Error codes from flarm
If any error is present numeric display will blink with an error code.

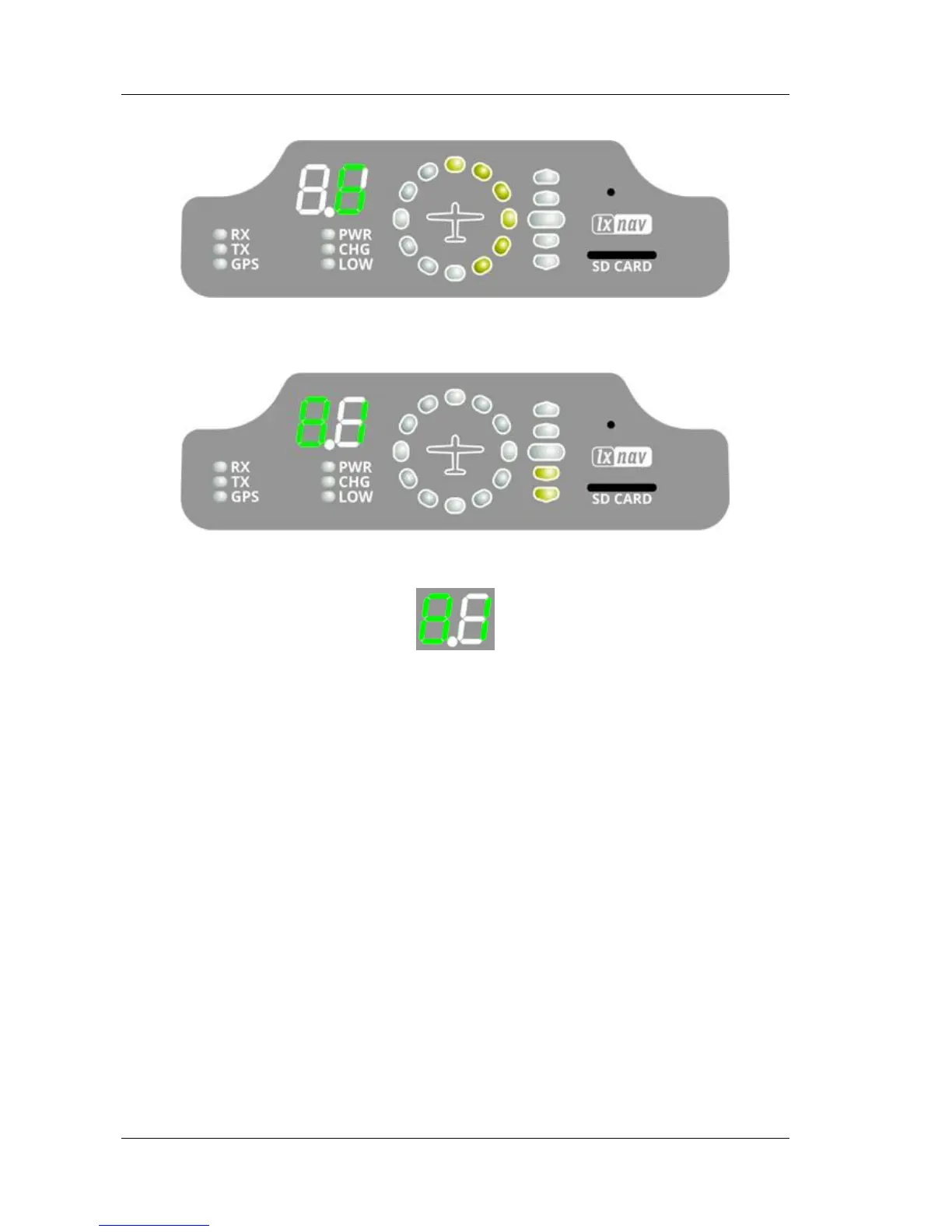

On picture below is code 81, which means No Obstacles.
Error codes are described in the list below.
11 = Firmware expired (requires valid GPS information, i.e. will not be available
in the first minute or so after power-on)
12 = Firmware update error
21 = Power (e.g. voltage < 8V)
22 = UI error
23 = Audio error
24 = ADC error
25 = SD card error
26 = USB error
27 = LED error
28 = EEPROM error
29 = General hardware error
2A = Transponder receiver Mode-C/S/ADS-B unserviceable
2B = EEPROM error
2C = GPIO error
31 = GPS communication
32 = Configuration of GPS module
33 = GPS antenna
41 = RF communication
42 = Another FLARM device with the same Radio ID is being received. Alarms are
suppressed for the applicable device.
