Lynx Evo - Kit Contents; Diagnostic Tool Overview

4
Introduction
Kit Contents
 Diagnostic tool
 Quick Start Guide
 Activation Card
 Case

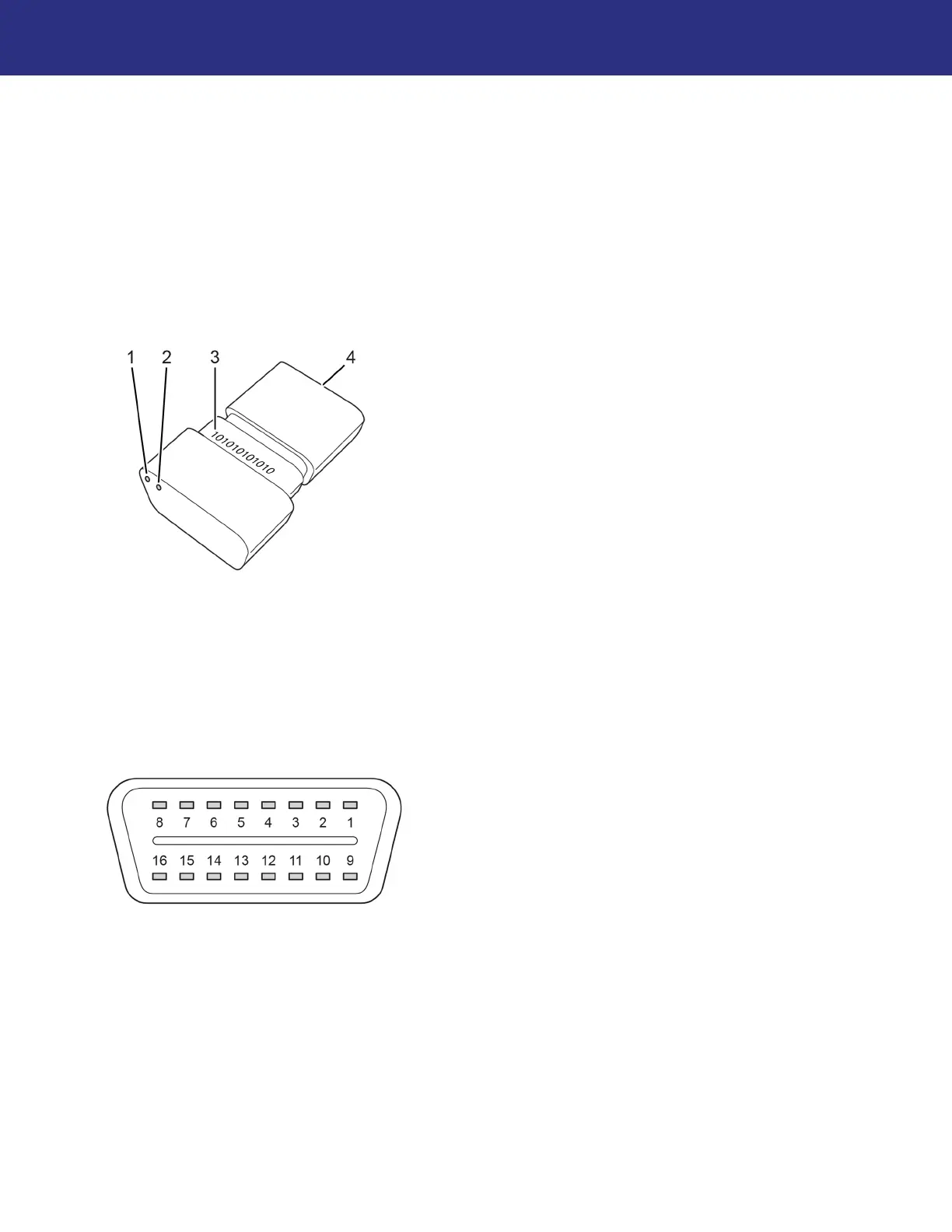

Diagnostic Tool Overview
1. Red LED: Indicates communication between the Lynx Evo app and the Diagnostic Tool
2. Blue LED: Indicates power to the Diagnostic Tool
3. Product serial number
4. OBD diagnostic connector
Diagnostic connector pin-out
