DRIVEN PULLEY, ADJUST AND SERVICE
IBC- and BOMBARDIER-driven pulley
As in service maintenance chart requires must driven pulley cleaned and its function
checked. At least once in season (exm. nearby end of season) must driven pulley be
disassemblied and all worn parts replaced by new one. That must be performed by an
authorised Lynx-service point.
With the three nuts in the driven pulley it is possible to adjust
 Tension of the belt
 Belt height location on driven pulley flanges surfaces.
With the original pre-tension of the clutch the best possible function is achieved in most
driving circumstances. If the clutch has to be re-adjusted or it has to be controlled, contact
your nearest LYNX dealer/work shop.
WARNING!
Wrong installing procedure may cause engine damages. Do not adjust transmission
system. Contact your nearest authorized Lynx-service point.

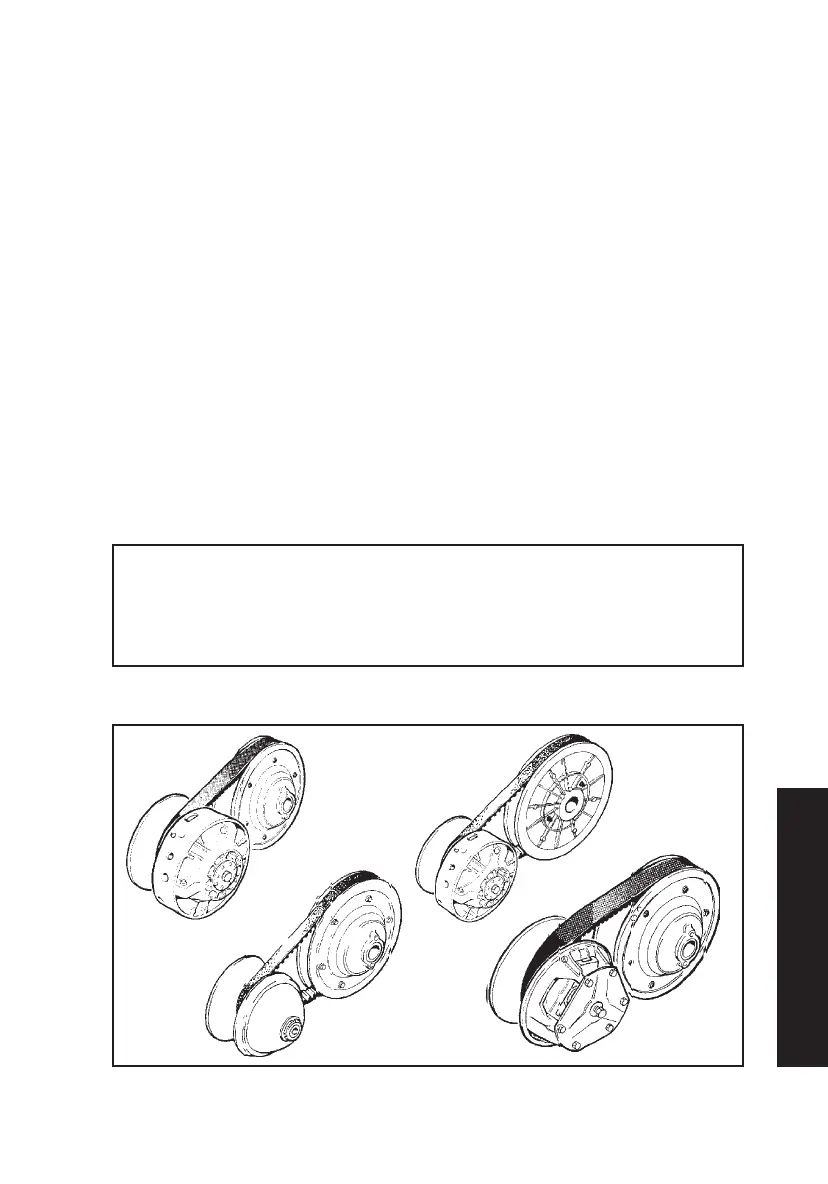

COMET / BBD
TRA / BBD
TRA / IBC
IBC / BBD
