CONTROLS, INSTRUMENTS AND EQUIPMENT

520002104-501

Spare Drive Belt Holder

A spare drive belt can be stored in a holder located on the drive belt

guard.

NOTE: The s pare drive be lt is not supplied with the snowmobile.

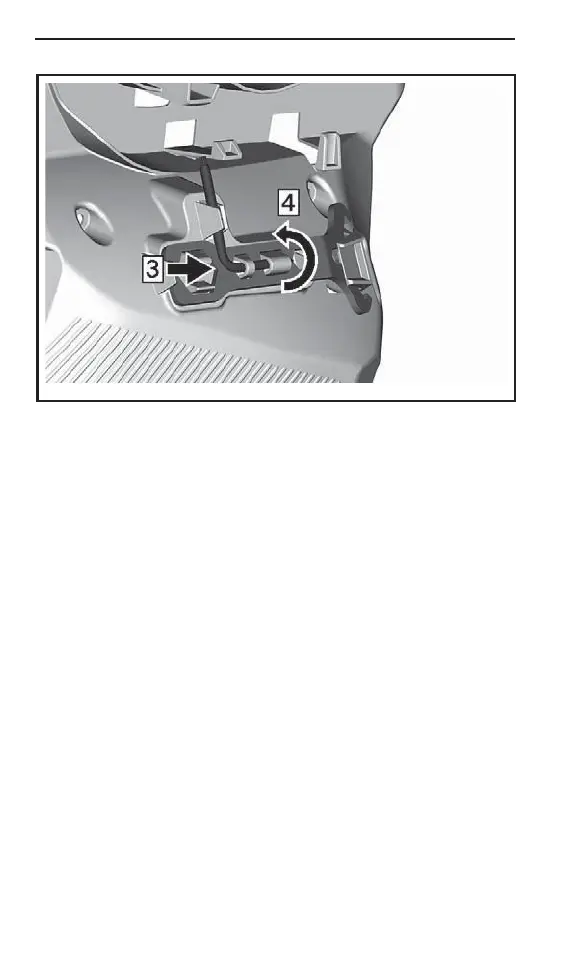

Position spare drive belt into drive belt guard slot.
