Rear Suspension Adjustments
619900934-008_b

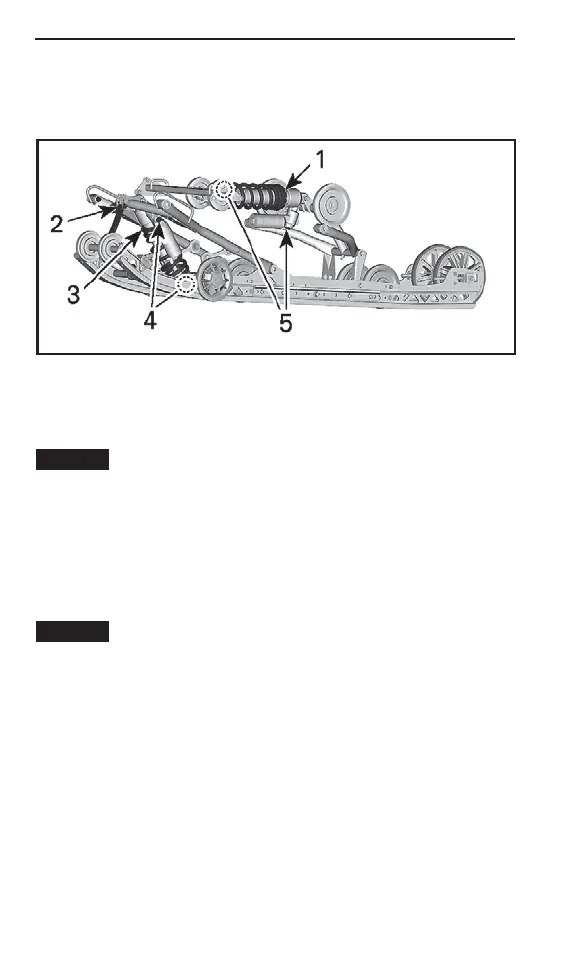

TYPICAL - ADJUSTABLE COMPONENTS
1. Rear spring
2. Stopper strap
3. Center spring
4. Center shock absorber
5. Rear shock absorber
NOTICE
Whenever adjusting rear suspension, check track ten-
sion and adjust if necessary.
Stopper Strap
Stopper strap length has an effect on the am ount of weight the cen-
ter spring has to carry especially d uring acceleration, therefore on the
front end uplift.
Stopper strap length also has an effect on center spring travel.
NOTICE
Whenever stopper strap length is changed, track ten-
sion must be checked.
NOTE: Stopper strap can be set to position 1, 2, 3 or 4. Smaller num-
bers correspon d to a longer strap setting.
