CONTROLS, INSTRUMENTS AND EQUIPMENT
Auto-rewind type located on right hand side of snowmobile. To en-
gage mechanism, pull hand le slowly until a resistance is felt then pull
vigorously. S lowly release handle.
NOTE: The maximum torq ue that can be transmitted to the engine
by the rewind starter is 80 N•m (59 lbf•ft). The maximum force that
can be exerted on the on the rope is 2 200 N (494.6 lbf).
Storage Compartment
A s torage compartment is located at the front of the vehicle, ab ove
the gauge.
The Operator's Guide and the emergency starter rop e are in the front
storage compartment.

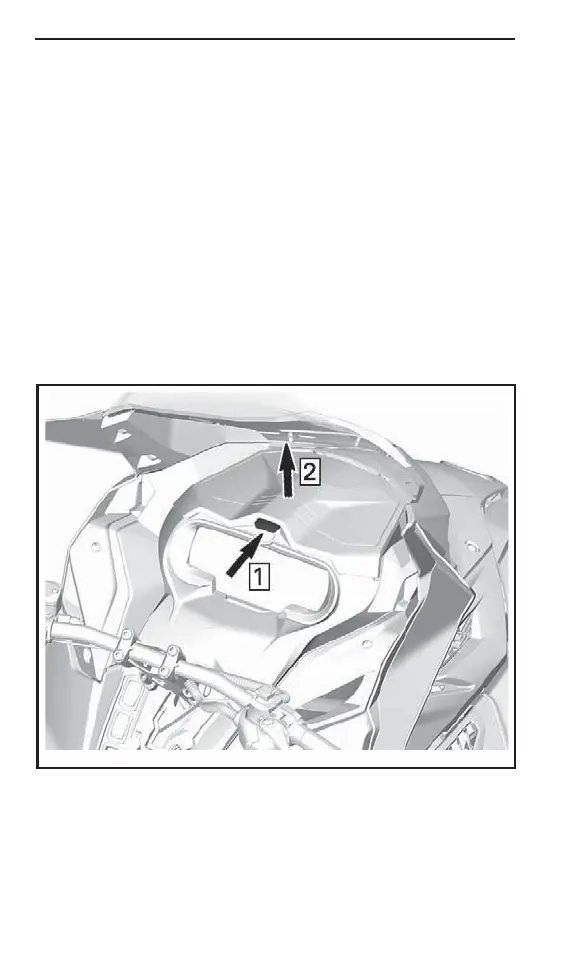

To open, push the button and lift the cover.
619900974-004
TYPICAL
NOTE: When closing, make sure cover is secured properly. You will
hear a "clic".
88
