MAINTENANCE PROCEDURES
TIGHTENING TORQUE
Check plug
6N•m ±1N•m
(53 lbf•in ±9lbf•in)
Reinstall the filler cap.
Drive Chain
Access to Chaincase
Open RH side panel, refer to
CONTROLS, INSTRUMENTS AND
EQUIPMENT
.
Drive Chain Adjustment
Using the Torx end of the driven pulley expander, GENTLY turn ten-
sioner clockwise to eliminate the play.

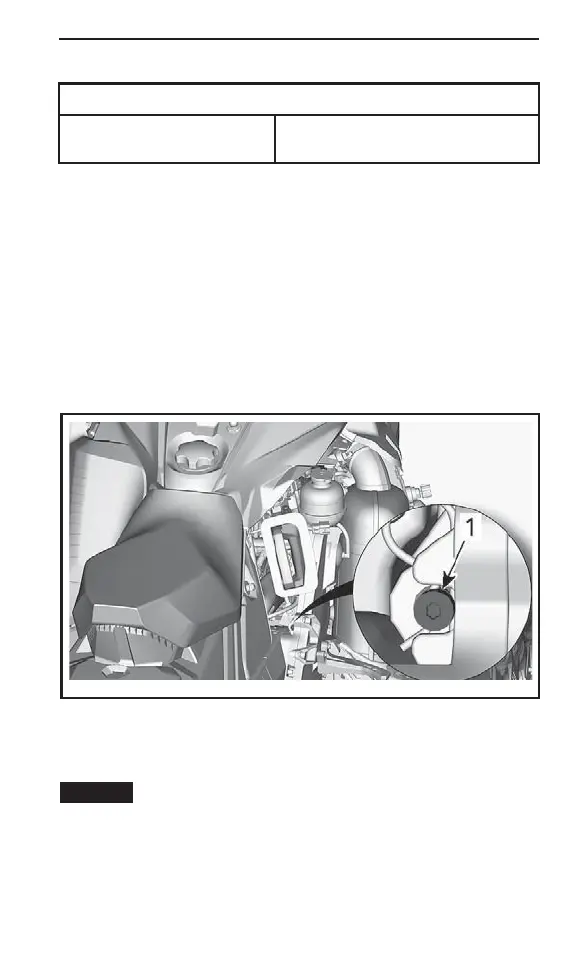

520001798-006_a
TYPICAL
Do not force the tensioner in.
NOTE: Do not remove the hair cotter pin.
NOTICE
Overtightening the drive chain could result in severe
damage to the chaincase components.
