MAINTENANCE PROCEDURES

520001663-011_a

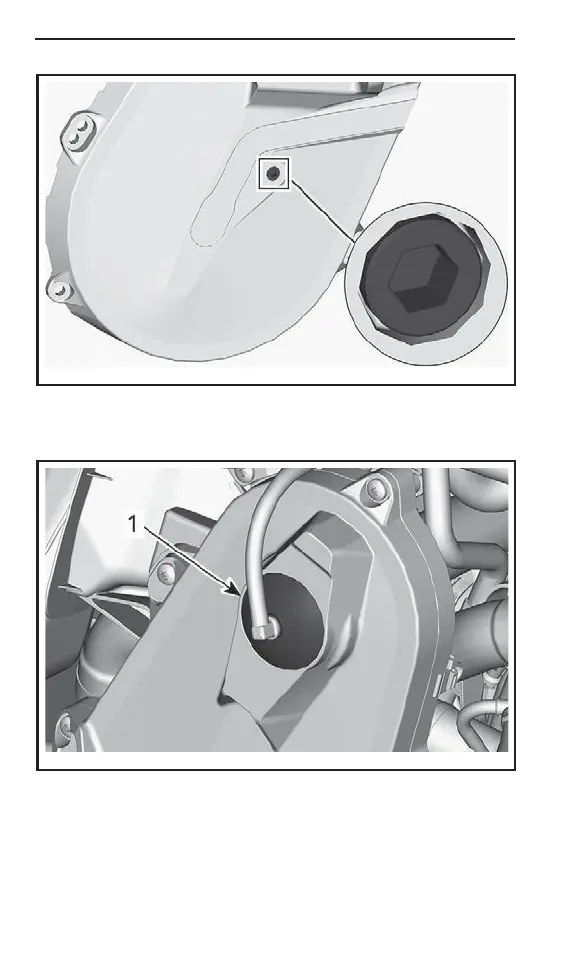

CHECK PLUG

3. Re move the filler cap.

520001663-010_a

TYPICAL - TOP OF CHAINCASE

1. Filler cap

4. Pour recommended oil i n the filler hole until oil comes out by the

check plug hole.

5. Reinstall check plug and tighten to specification.

172
