CONTROLS, INSTRUMENTS AND EQUIPMENT

520002353-019_a

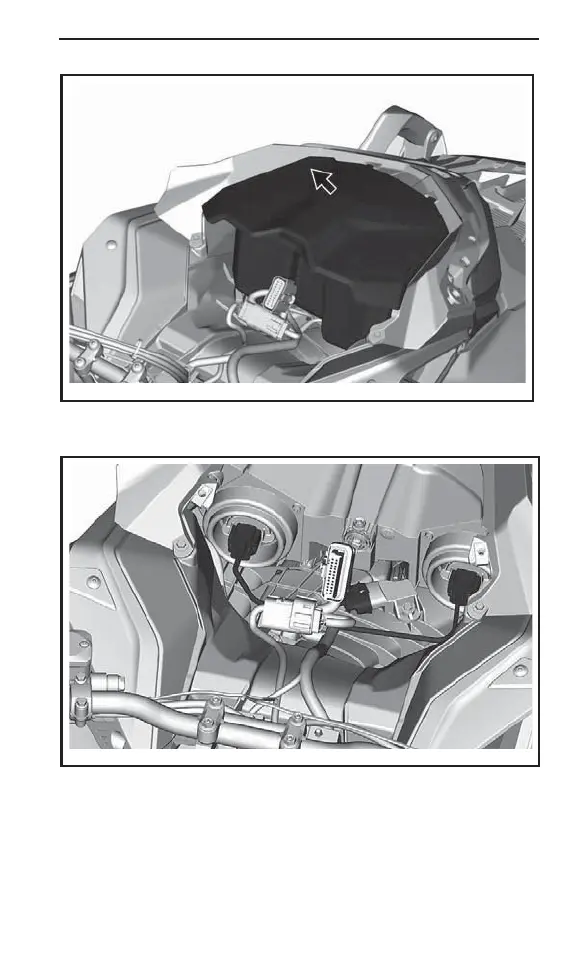

7. Disconnect the MAPTS and headlight connectors.

mmr2017-051-012

TYPICAL

8. Remove both side panels. Refer to

SIDE PANELS

in this section.

9. Loosen the air intake duct clamp.
