2. Installation
2.1 Installation operations
Your supplier is the specialist chosen by M-design to represent it in your region. For your safety and satisfaction, we recom-
mend that you let him carry out the installation.
The appliance must be installed in accordance with the rules laid down and any local regulations. In the absence of appropri-
ate regulations in Belgium, the French installation rules (D.T.U. 24.2.2) apply. If you nevertheless intend to carry out the work
individually, we recommend that you
- refer to the terms and conditions of our guarantee contracts
- ask your supplier for advice.

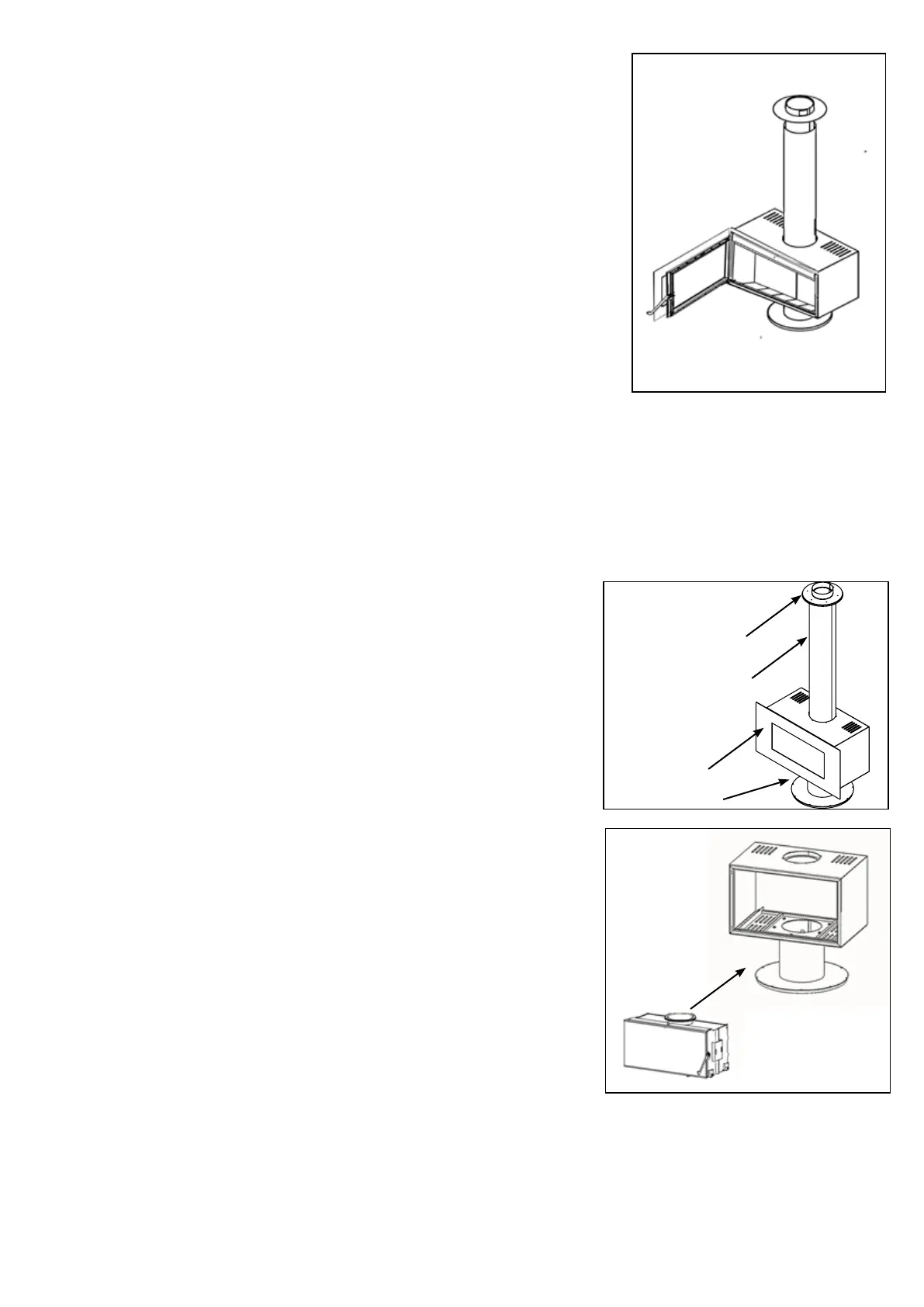

2.2 Reception of the fireplace
1. Foot
2. Combustion chamber
3. Decorative tube
4. Chimney pot connection
2.2.1 Combustion chamber
The combustion chamber can slide completely out of the outer casing
(see page 5: Venus)
2.3 Chimney
The standard exhaust diameter of Venus HT is:
Venus 700 HT - Ø150 mm
Venus 850 HT - Ø180 mm
Venus 1000 HT - Ø180 mm
Venus 850DHT - Ø180mm
The chimney flue must be built under strict conditions:
• The duct must be thermally insulated.
• The angle of these changes in direction with the perpendicular should not exceed 45°.
• The exit of the chimney and its location are very important.
• An individual flue has no more than two changes of direction.
• Existing obstacles in the vicinity of the chimney exit must be taken into account.
• Connect a maximum of one appliance per chimney flue, choose the best one / close the unused one
1. General
1.1 Transport and installation
• Transport the Venus HT upright or in dicult cases at an angle of 45°.
OPENING AND CLOSING THE DOOR:
PROCEED SLOWLY WHEN OPENING THE DOOR WHEN THE FIRE IS ON. Ope-
ning the door too quickly causes smoke deposits in the room.
TO CLOSE DOOR: lift the handle, push the door against the combustion chamber
and push the handle down until it is completely locked.
Close the decorative frame.
Decorative frame
Door combustion chamber
