M Design VENUS - Page 50

Ø 200 Ø 180 Ø 150
Venus 700 ≥ 4m (O) ≥ 5m (S)
Venus 850 ≥ 4m (O) ≥ 5m (S)
Venus 1000 ≥ 5m (O) ≥ 6m (S)
Venus 850D ≥ 4m (O) ≥ 6m (S)
360°
VENUS 700HT
Ø250
Ø200
STANDARD 1600mm
360
1600
505
382
30
1570
X ( = 2507 --> +/- 2757 )
Min. 50 mm
185
540
360°
185
626
130
130
130
50
MINIMUM HEIGHT OF THE CHIMNEY IN TERMS OF ITS REDUCTION
S = standard O = option
WITH LONG FRAME
WITH SHORT FRAME

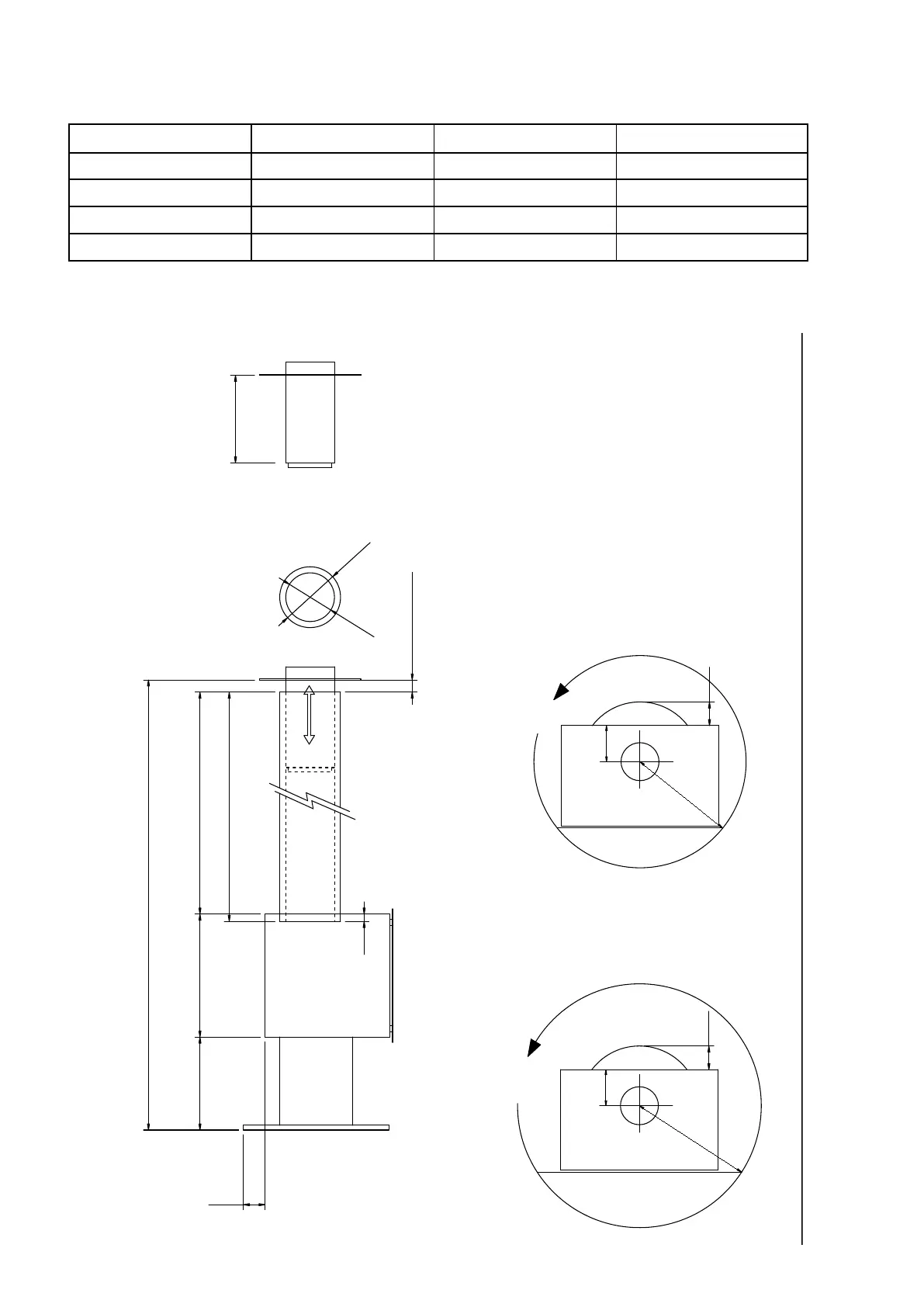

2.4 Dimensions decorative tube
