MA lighting 2-Port Node - Layout; Surface Mounting

MA Lighting Technology GmbH
.
Dachdeckerstr. 16
.
D-97297 Waldbüttelbrunn
88
88
8
- ETHERNET 10/100 - base T/X
For RJ45 plug connection
- Power supply with fuse T1A, L250V
- LED Power
Will be on while external power supply or
PowerOverEthernet
- Display
- DATA A DMX OUT or IN
- LED (green) DATA
Will be on while transferring data via the A port
- DATA B DMX OUT or IN
- LED (green) DATA
Will be on while transferring data via the B port
- Button (red) MENU
To step through the menus
- 2 M12 bolts – on the back side and on the top cover;
for fastening on the rig.

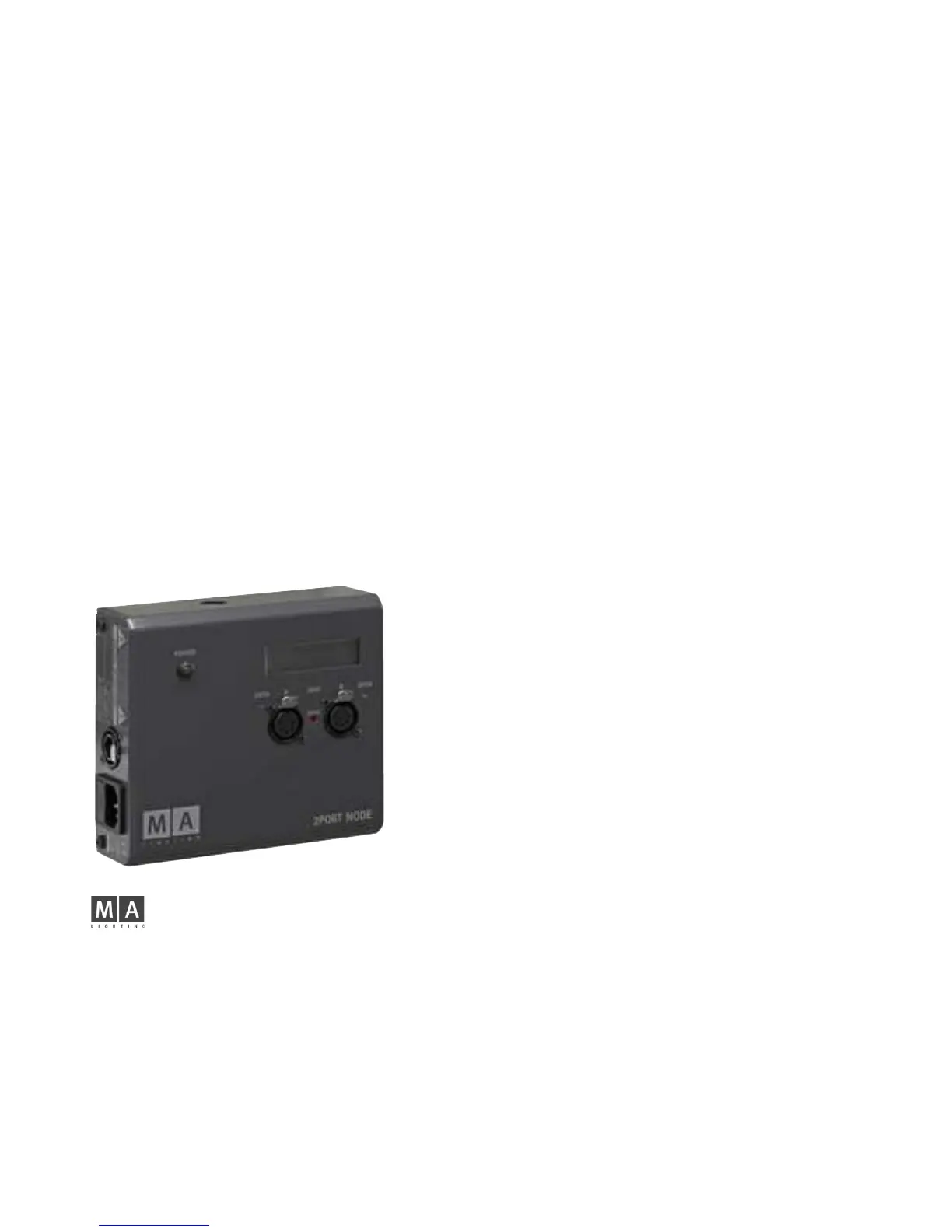

Layout
SURFACE-MOUNTING
With power supply over the network
(PowerOverEthernet) and additionally with the integrated
110/220V 50-60Hz power supply unitWith power supply
over the network (PowerOverEthernet) and additionally
with the integrated 110/220V 50-60Hz power supply unit
The 2-Port can be operated by means of PowerOverEthernet
or by an external power supply or from both sources
simultaneously – no need to set or activate itThe 2-Port can
be operated by means of PowerOverEthernet or by an
external power supply or from both sources simultaneously-
no need to set or activate it
.
