81

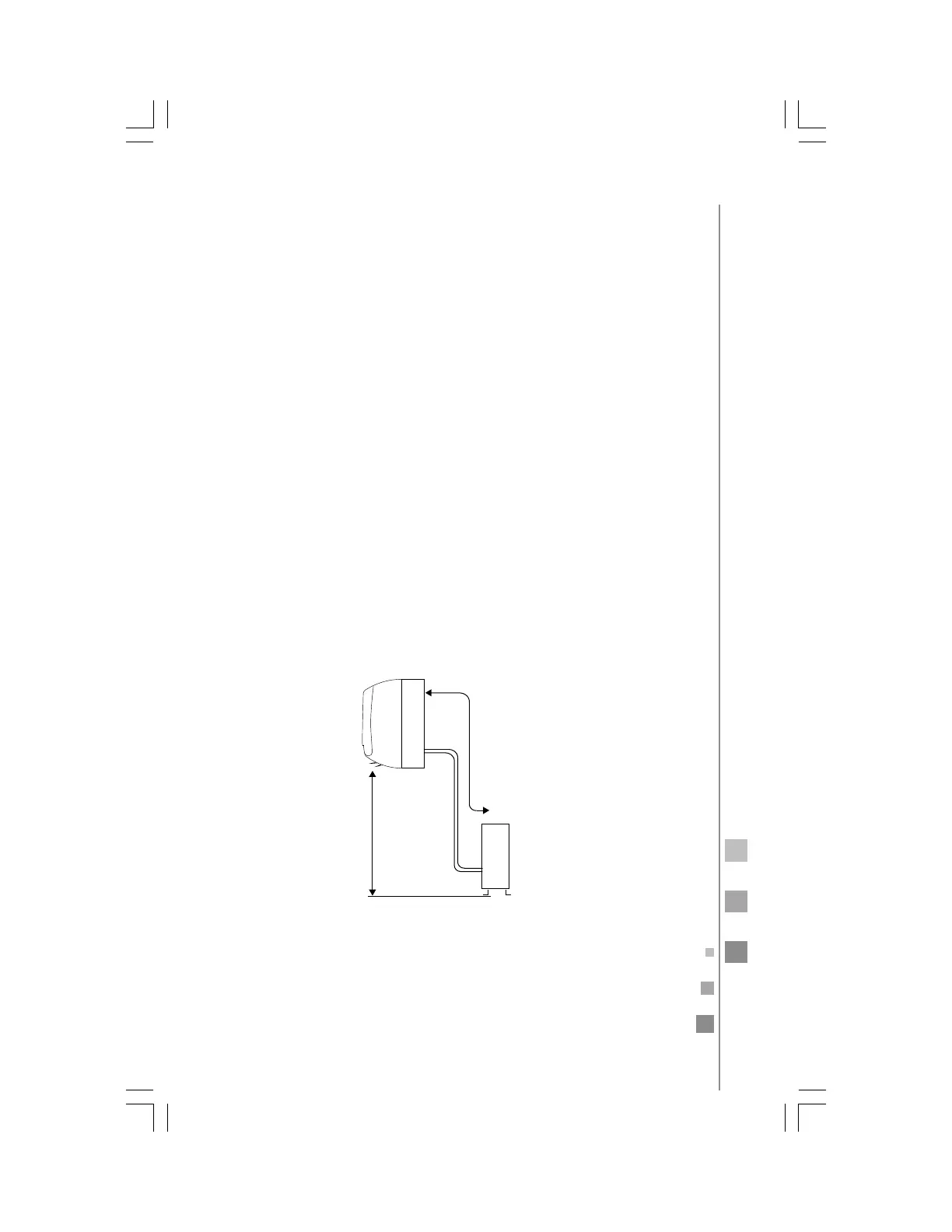

Indoor Unit
15 m max.
length of
piping
Outdoor
unit
Height
must be
less than
5 m
select the installation location
Select the location to install the indoor unit
• Select a place where there are no obstacles near the air outlet and
air can be easily blown to every corner.
• Select a place where piping and wall hole can be easily arranged.
• Observe the required clearances from the unit to the ceiling and
walls according to the installation diagram on previous page.
• Select a place where the air filter can be easily removed.
• Keep the unit and remote control 1 m minimum away from televi-
sion sets, radio etc.
• Keep the unit as far as possible from fluorescent lamps.
• Do not place any object near the air inlet to obstruct it from air
absorption.
• Install the indoor unit on a wall that is strong enough to fully sup-
port the weight of the unit.
• Install the indoor unit in a place that will not increase operation
noise and vibration.
• Keep the indoor unit away from direct sunlight and heating
sources. Do not place flammable materials or combustion appli-
ances on top of the unit.
