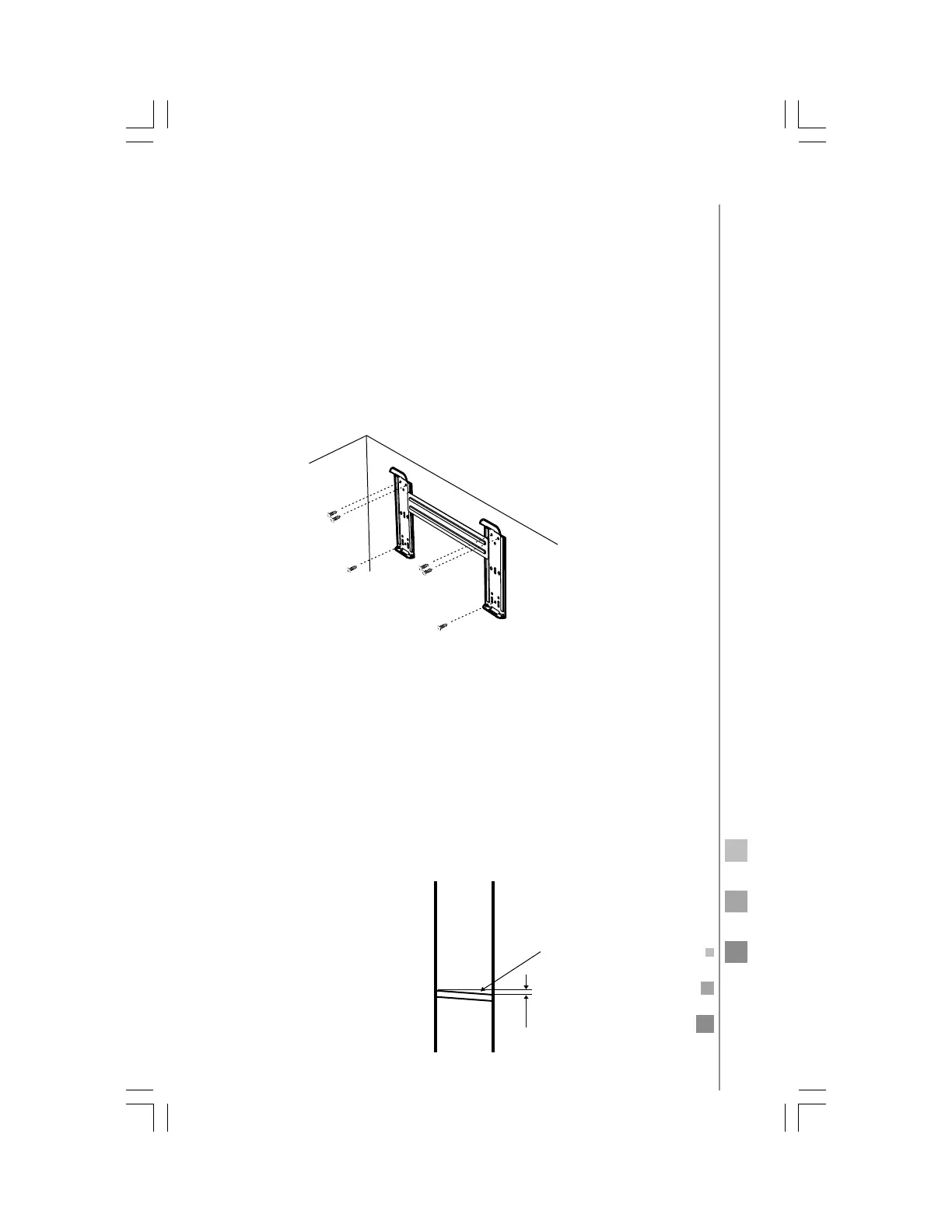

1. Installing the Mounting Plate
• Select an installation location for the mounting plate according
to the indoor unit location and piping direction.
• Keep the mounting plate horizontal using a horizontal ruler or
dropping line.
• Drill 32 mm deep holes on the wall to fix the mounting plate.
• Insert plastic anchors into the holes, fix the mounting plate with
tapping screws.
• Make sure the mounting plate is properly fixed. Then drill a
hole for piping.
Mounting
plate
Tapping
screws
Notes:
• The shape of your mounting plate may be different from the one
above, but the installation method is similar.
• As the above illustration shows, the six holes matched with tap-
ping screw on the mounting plate must be used to fix the mount-
ing plate, the others are prepared.
Indoor Outdoor
Wall hole sleeve (hard
polythene tube
prepared by user).
5 mm
(slope to
outdoor)
2. Drill a hole for piping
• Select the position of the hole for piping according to the loca-
tion of the mounting plate.
• Drill a hole in the wall. The hole should have a little slope to-
wards the outside.
• Install a sleeve
through the wall
hole to keep the
wall tidy and clean.
indoor unit installation
