MAC 201 - Introduction; General Description

Introduction/General description
32
Introduction
General description
Main features
The MAC model is an AV analogue TV signal to COFDM digital TV signal standalone
modulator unit. Suitable for individual residential installations, it is an ideal solution for
the distribution of analogue video signals with COFDM digital TV modulation in a single
standalone unit.
AV1 to AV4 are also serially digitalised, coded in MPEG2 and modulated in COFDM. The
COFDM base band signal is modulated on an RF carrier that can be adjusted at the output
to the VHF and UHF bands.
J
Programming:
F
User interface with LCD display and control button for basic conguration.
F
User interface from web browser via Ethernet connection.
F
All settings are automatically memorised.
F
Reprogrammable as many times as required.
F
Firmware updated via Ethernet connection with web browser.

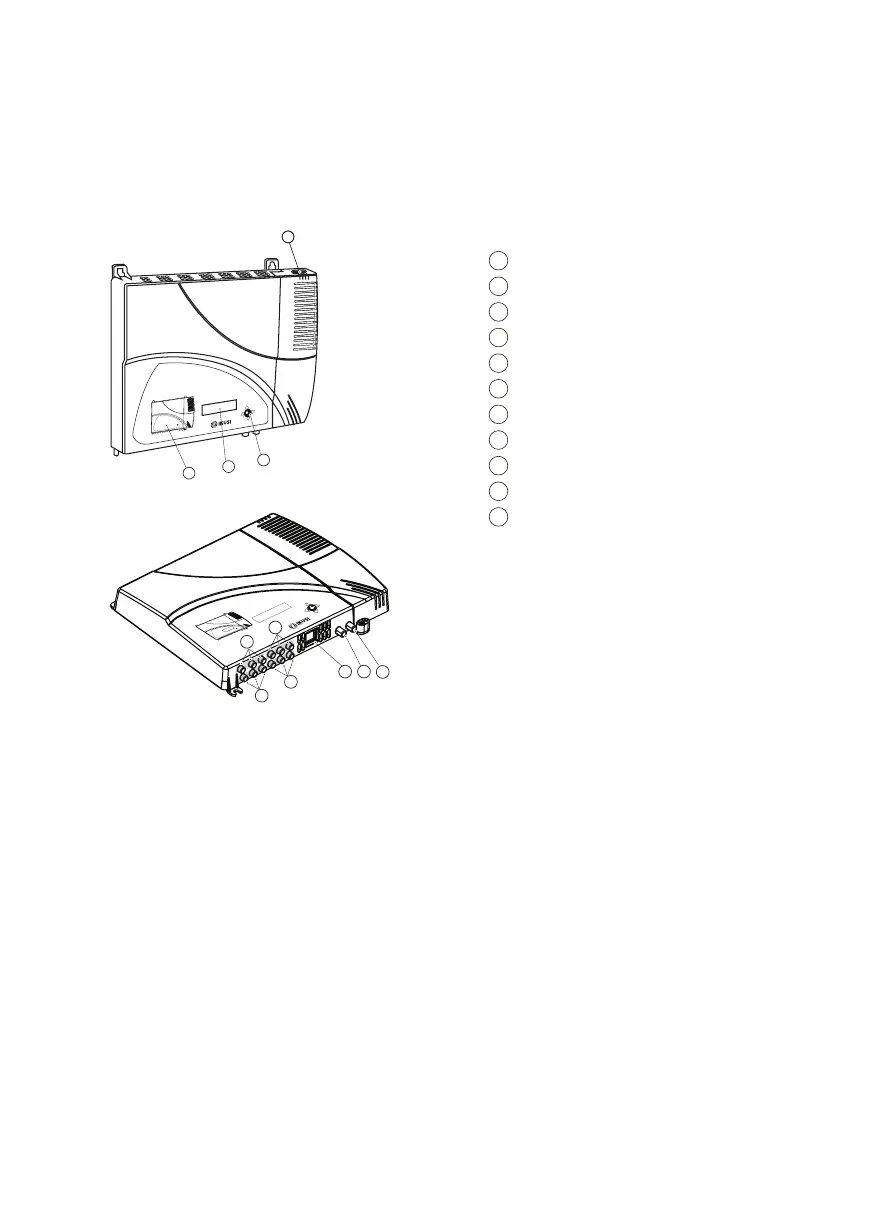

KEY
1 Mains connector
2 Front panel with cluster map
3 Display (LCD)
4 Control button
5 AV input 1
6 AV input 2
7 AV input 3 *
8 AV input 4 *
9 Ethernet connector
10 TV Loopthrough input
11 TV COFDM output
* Available only in MAC 401 model.













