Unit installation and conﬁguration/Setting the signals

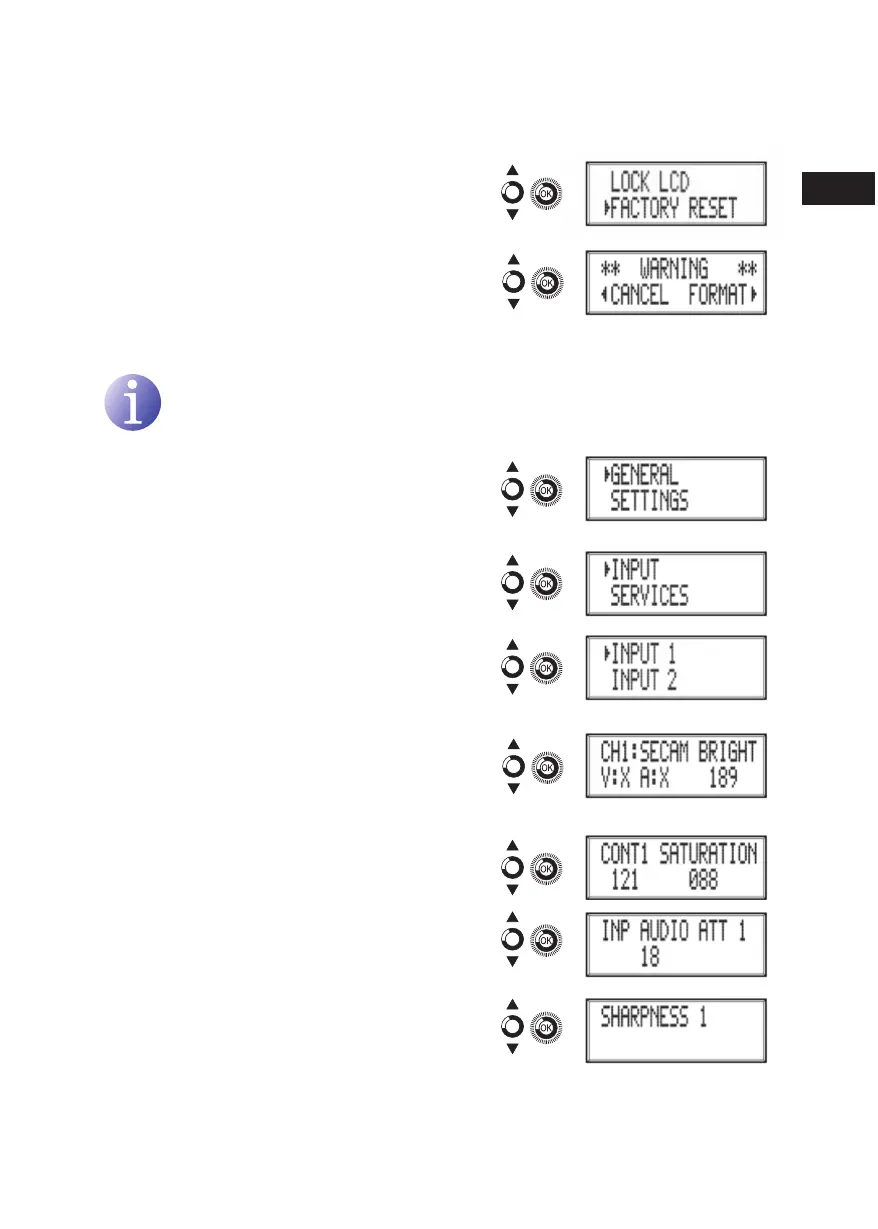

Restoring factory settings

6) Locate and select the option FACTORy SET-

TINGS to restore the factory settings of the

unit.

Select the option DELETE to delete all the modi-

cations entered in the conguration by the installer

or operator of the unit.

Setting the signals

NOTE

The unit can switch the input signals; alter their brightness, contrast and satura-

tion conditions; and adjust the output carrier in RF.

1) Locate and select the option SETTINGS.

Conﬁguring the input signals

1) Locate and select the option INPUT.

2) Locate and select the option INPUT and the

number corresponding to the input you want

to congure: 1 to 2 for MAC 201 and 1 to 4 for

MAC 401.

a) Locate and select the option CH1:*****

BRIGHT to check the type of input signal,

the video and audio detection, and con-

gure the brightness of the video signal (1

to 255).

b) Locate and select the option CONT1

SATURATION to congure the contrast

and saturation of video signal 1 (1 to 255).

c) Locate and select the option INP AUDIO

ATT 1 to congure the attenuation of audio

signal 1 in dB (1 to 40)

d) Locate and select the option SHARPNESS

1 to congure the sharpness of video sig-

nal 1 (HIGH, mEDIUm, SOFT or NONE).
