MacDon 5020 - Additional 50-Hour Greasing Points

Form # 147008 Issue 12/05
43
AUGER DRIVE JACKSHAFT BEARINGS
N
MAINTENANCE/SERVICE
GREASING THE WINDROWER
50 Hours:
(continued)
5. Frame-to-Header Pivot (J) - two fittings
6. Lower Float Link Bushings (K) - two fittings
7. Tongue Pivot (L) - one fitting
8. Transport Lock Pin (M) - one fitting
9. Auger Drive Jackshaft Bearings (N)
- one fitting (on sprocket hub)

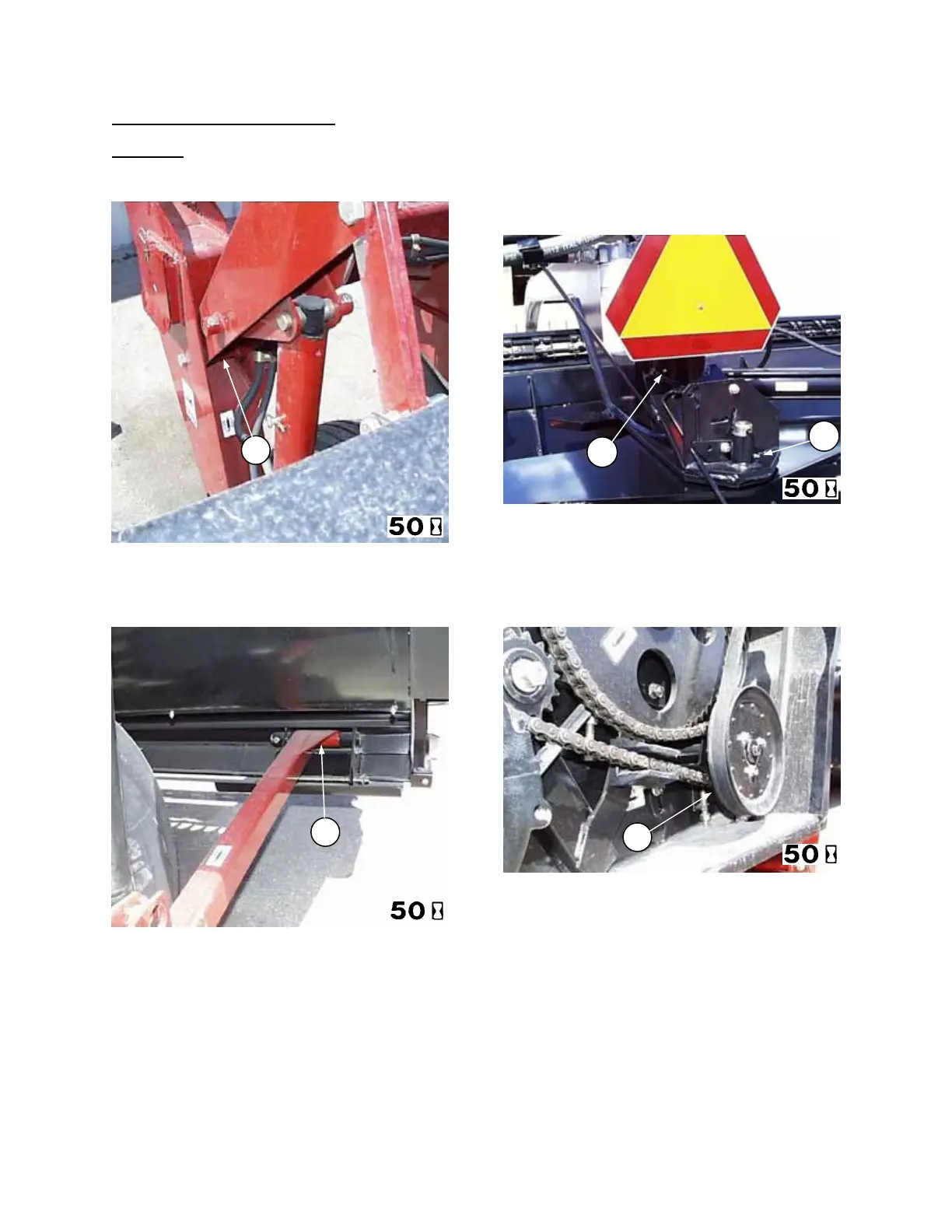

FRAME-TO-HEADER PIVOT
J
LOWER FLOAT LINK BUSHINGS
K
L
M
TONGUE PIVOT & TRANSPORT LOCK PIN
