MacDon 5020 - 100-Hour Greasing and Other Lubrication

Form # 147008 Issue 12/05
44
MAINTENANCE/SERVICE
GREASING THE WINDROWER
(continued)
100 Hours:

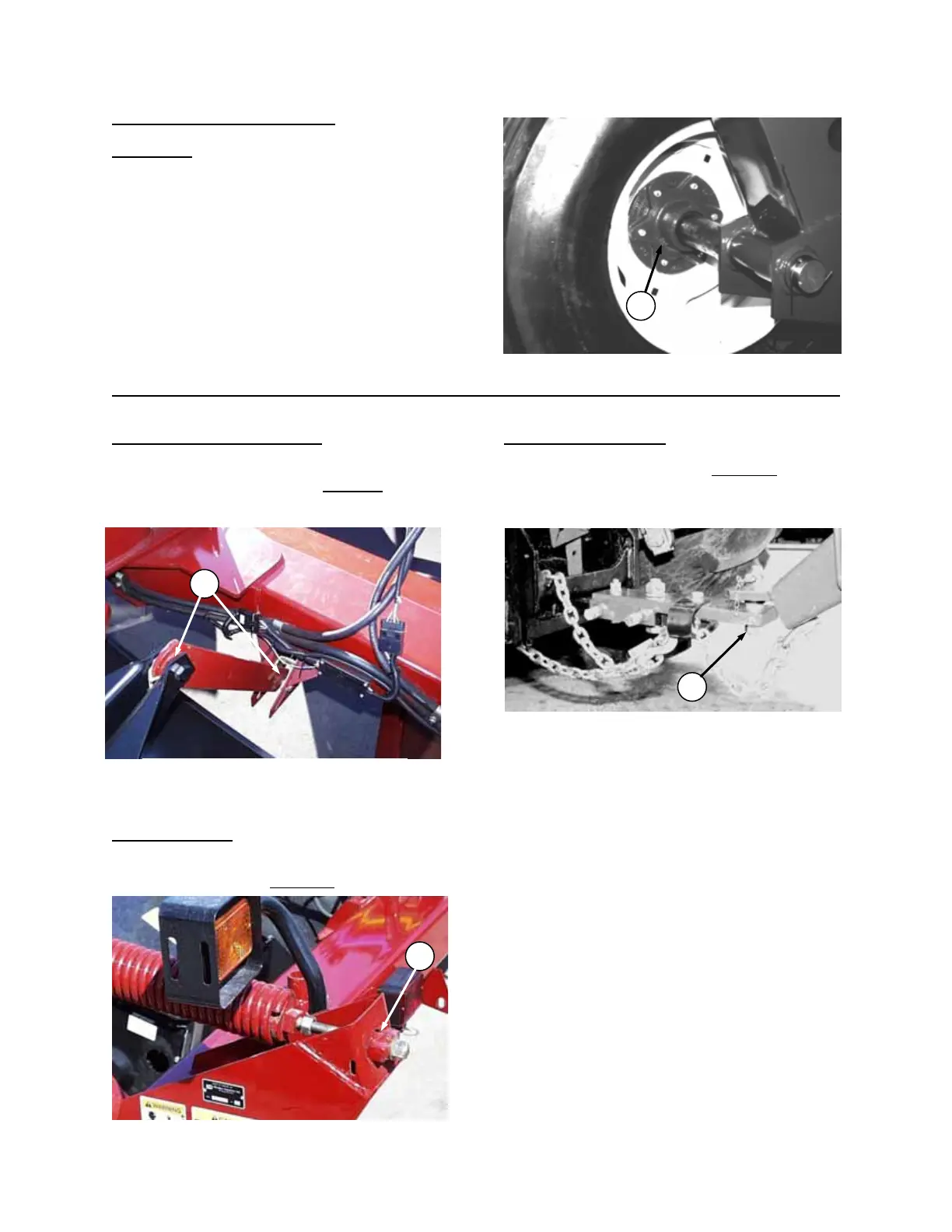

1. Wheel Hub Bearings (D) - two fittings
CENTER LINK BALL JOINTS
Apply SAE 30 or equivalent lightweight oil to the
center link ball joints (A) every 50 hours
.
SPRING PIVOTS
Apply SAE 30 or equivalent lightweight oil to the
spring pivots (B) every 50 hours.
HITCH PIN LOCK NUT
Check hitch pin nut (C) every 50 hours.
Maintain
350 ft. lbs. (475 N⋅m) torque.
WHEEL HUB BEARINGS
D
OIL SPRING PIVOTS
B
CHECK HITCH PIN LOCK NUT
C
A
OIL CENTER LINK BALL JOINTS
