MAINTENANCE/SERVICE
AUGER AND AUGER DRIVE
Stripper Bars
To adjust:
1. Position auger for clearance to strippers (A)
and (B), as shown. Use shims as required at
stripper bars (A) and (B). See Parts Catalog.
2. Loosen bolts (H) along upper stripper bar.
3. Slide extension bars (J) in or out to obtain
approximately 1/32 – 5/32” (1 – 4 mm)
clearance to auger flighting (K) along entire
auger length.
4. Tighten bolts (H).
NOTE: In heavier crops it may be necessary to
remove the front stripper (A) for smoother crop
flow across the auger.

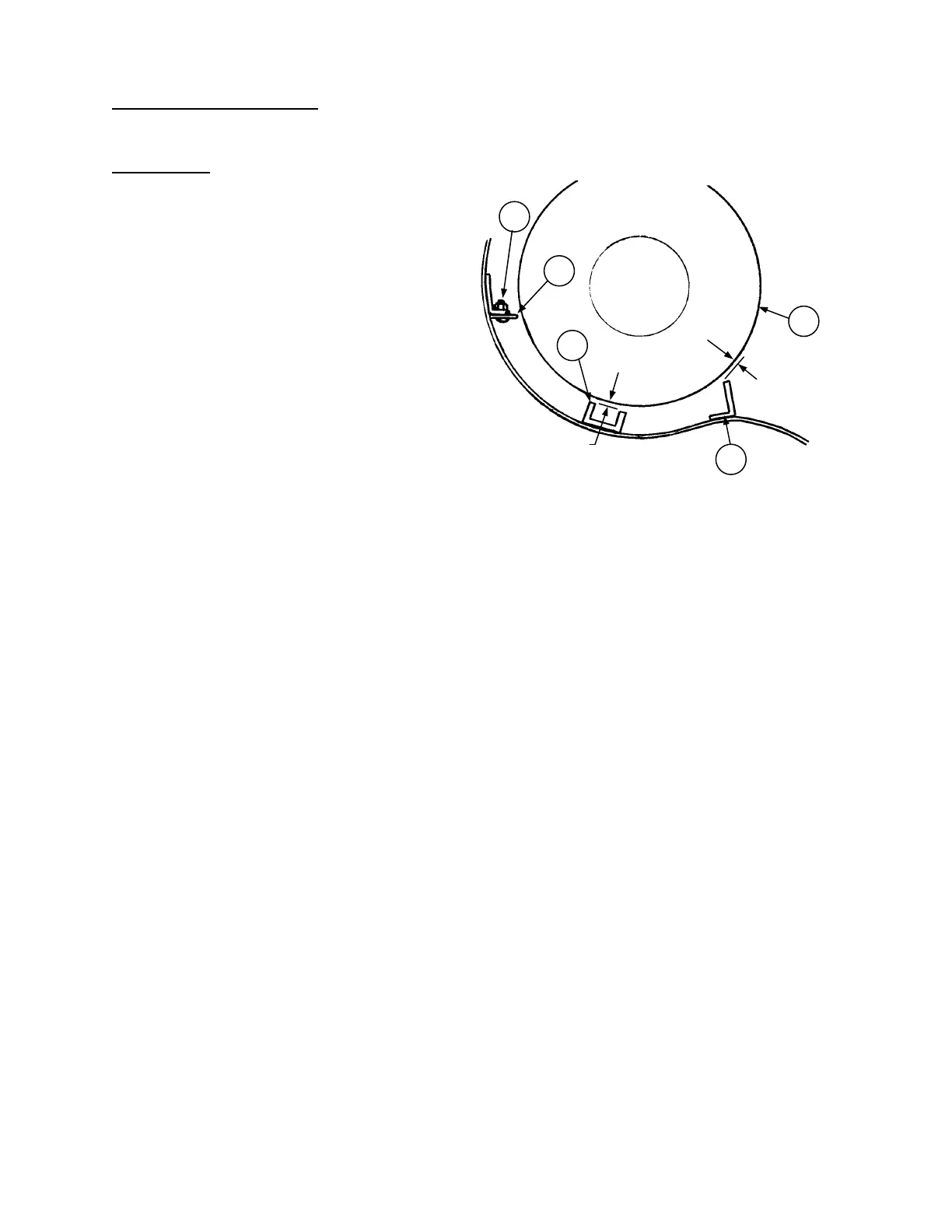

STRIPPER BAR ADJUSTMENT
A
K
B
J
H
1 – 4 mm
(1/32 – 5/32”)
CLEARANCE
1 – 4 mm
(1/32 – 5/32”)
CLEARANCE
