Form # 147008 Issue 12/05
75

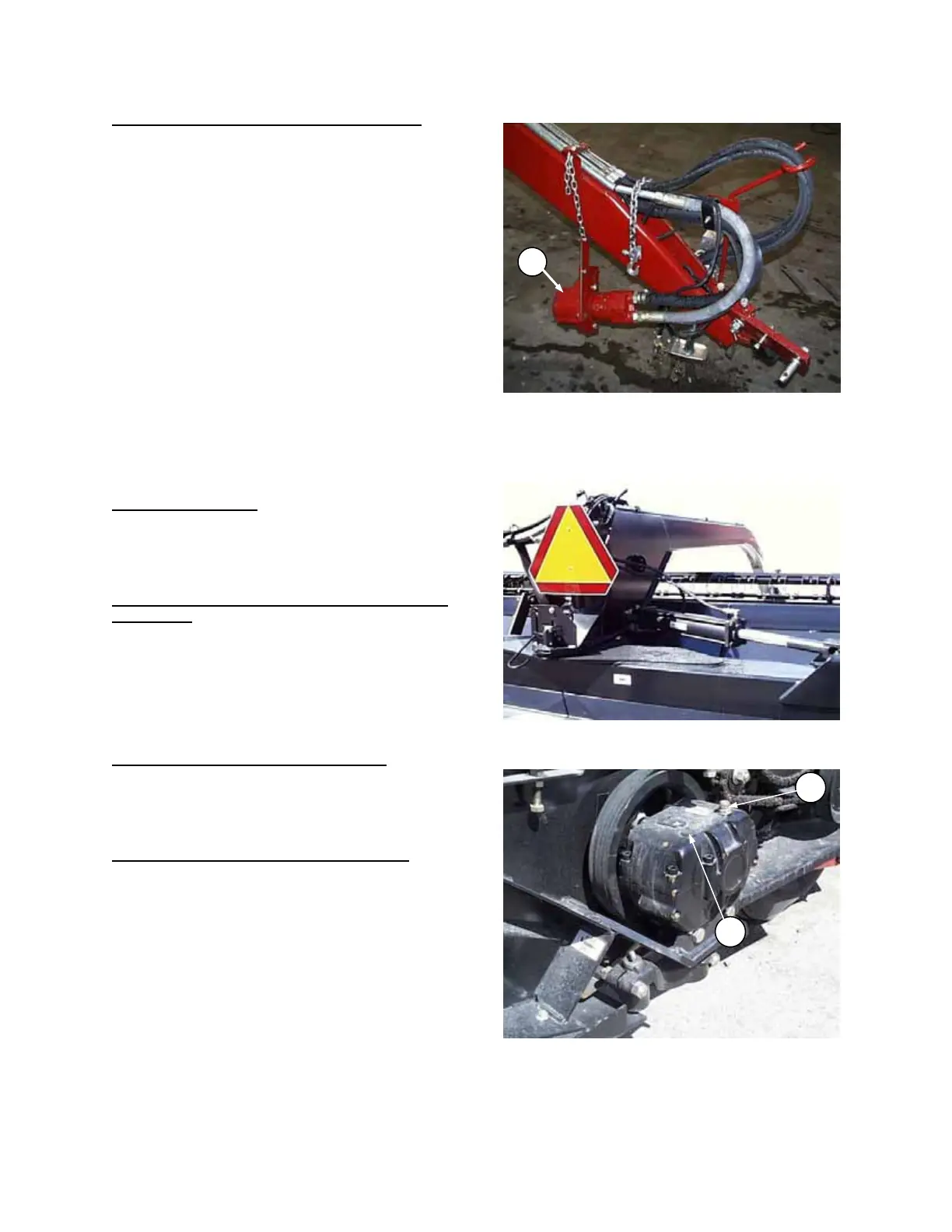

MOUNT PUMP IN STORAGE POSITION
S
UNLOADING & ASSEMBLY
ATTACH HYDRAULICS AND ELECTRICAL
8. Remove shipping material (strapping, wood blocks
and foam wrap) that secures the components at
the front of the tongue. Mount pump (S) in storage
position at front of tongue.
9. Install quick coupler tips (matching the tractor to be
used) on the remote hydraulic hoses.
INSTALL SMV SIGN
Install Slow Moving Vehicle sign at rear of unit with
hardware provided.
REMOVE LIFTING FRAMEWORK & SHIPPING
MATERIAL
Remove the yellow lifting framework and any
remaining shipping material. Retain the hardware
used to secure the lifting framework. Some of this
hardware will be reused to install hood and
deflectors, next page.
ATTACH WINDROWER TO TRACTOR
See "Attaching Windrower to Tractor" in Operation
section for details.
REPOSITION WOBBLE BOX BREATHER
Swap position of plug (A) and breather (B) at wobble
box.
ATTACH SMV SIGN
REPOSITION WOBBLE BOX BREATHER
(FIELD POSITION SHOWN)
A
B
To Next Page
