MAINTENANCE/SERVICE
GREASING THE HEADER AND CONDITIONER (continued)
100 Hours or Annually

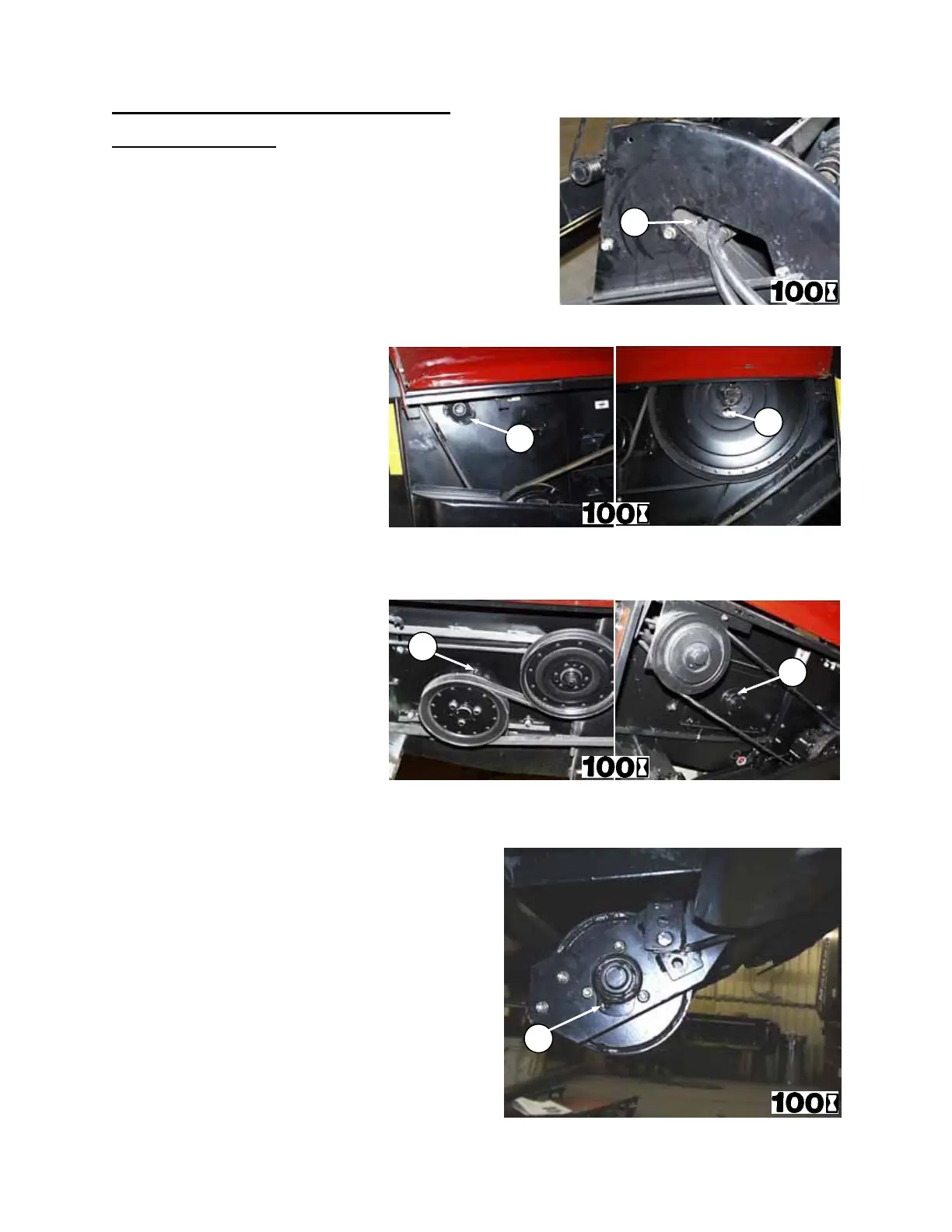

5. Reel Drive Chain (J)
- one fitting on 922 and 933 Headers. (Four to six pumps of
grease gun will be sufficient.)
6. Reel Shaft Bearings (K) and (M)
- two fittings on 912 Header
7. Auger Shaft Bearing (L) and (P)
- one fitting
8. Gauge Roller Bearings (N) - (Optional Equipment)
- four fittings
