MacDon D50 - Page 17

UNLOADING AND ASSEMBLY
Form 169007 17 Revision D

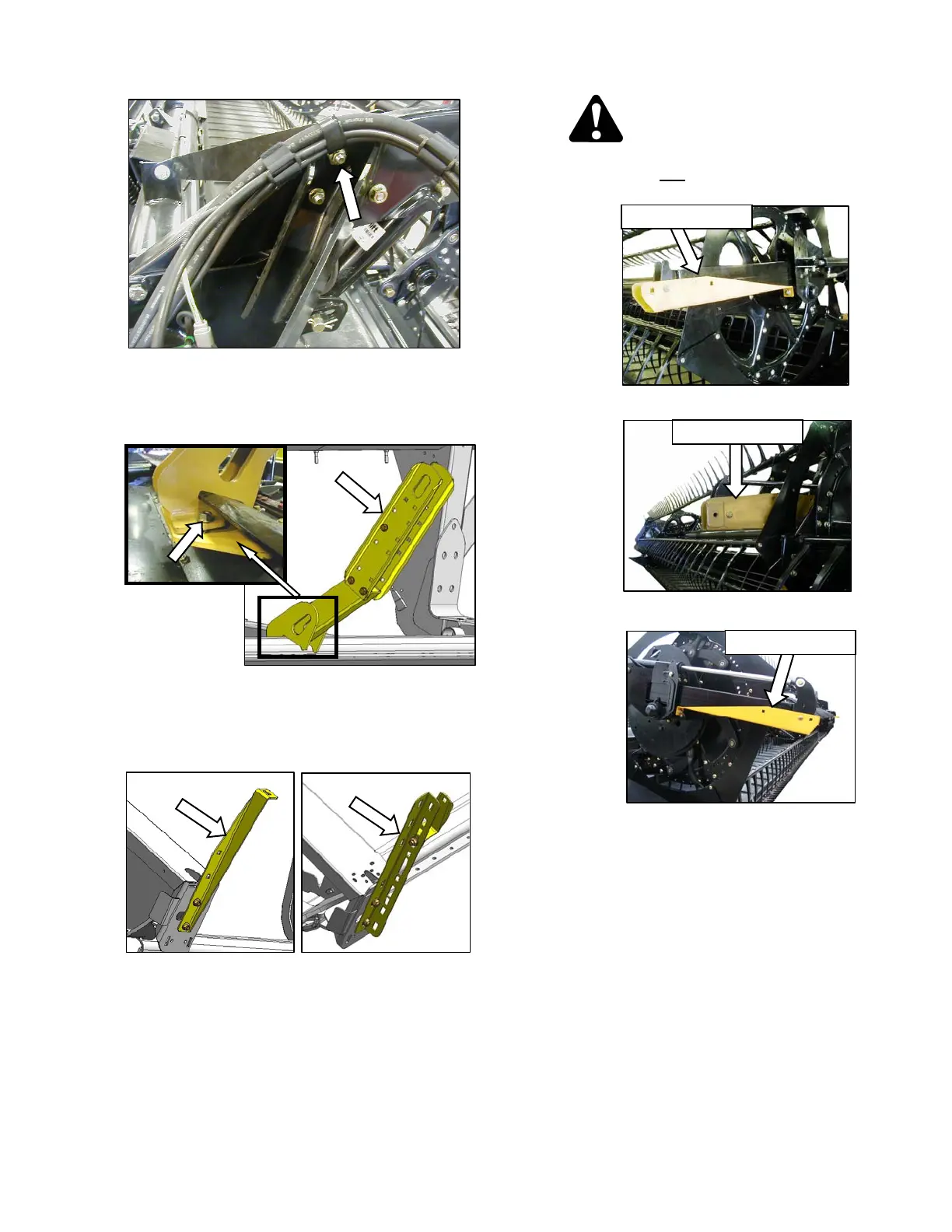

p. Re-install bolt with hose clip through upper hole in
reel prop. (DOUBLE REEL ONLY).
q. Hold support, and remove two bolts at base of
center reel arm shipping support so that plate
drops free. (DOUBLE REEL).
r. Slide lower support off cutterbar.
s. Remove two reel arm supports from endsheets.
CAUTION
Braces On Reel Arms Keep Reel From Sliding
Forward. Do Not
Remove.
CENTER CYLINDER - DOUBLE REEL
CENTER ARM - D60 DOUBLE REEL
D
O
N
O
T REM
O
VE
LH ARM - D60
D
O
N
O
T REM
O
VE
RH ARM - D60
D
O
N
O
T REM
O
VE
D50
D60
