MacDon D50 - Step 8. Connect Reel to Fore-Aft Cylinders

UNLOADING AND ASSEMBLY
Form 169007 24 Revision D

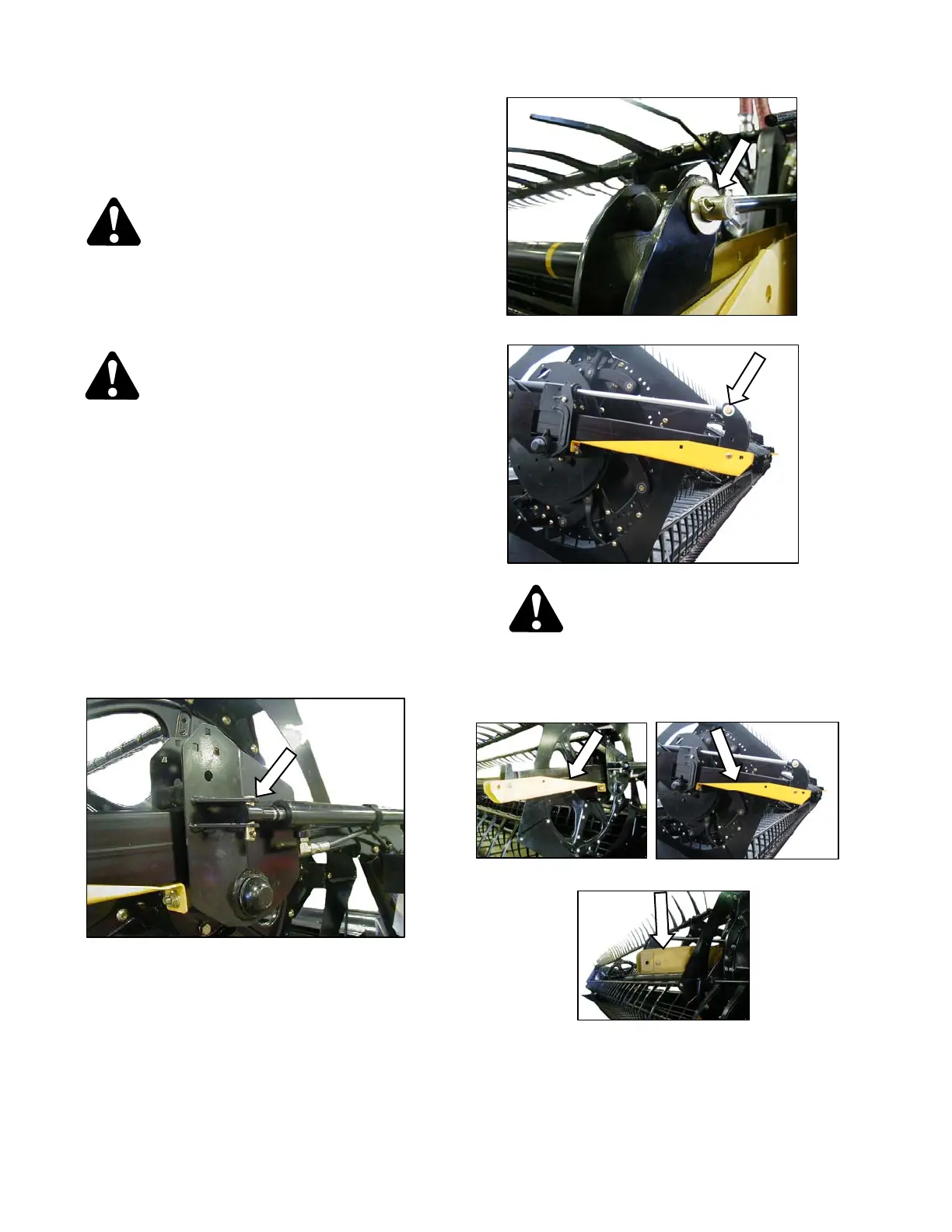

STEP 8. CONNECT REEL TO
FORE-AFT CYLINDERS
A. D60
CAUTION
The reel hydraulic cylinders must be
connected to the reel prior to removing the
supports. Failure to do so may result in the
reel sliding full forward when the supports are
removed.
CAUTION
Be sure all bystanders are clear of machine
before starting engine or engaging any header
drives.
a. Remove shipping wire and pins from reel fore-aft
cylinders on each reel support arm. Pin may be
installed in arm.
b. Start windrower, and level reel arms with
windrower hydraulics.
c. Extend and retract cylinders to re-phase cylinders.
d. Align cylinders with reel arm mounting holes with
windrower hydraulics. Stop engine, and remove
key.
e. Attach cylinders to reel arms with clevis pins,
washers, and cotter pins.
CAUTION
Reel arms must be level prior to removing reel
shipping braces. Failure to do so may result in
reel moving suddenly.
f. Remove shipping braces on reel arms.
CENTER ARM - DOUBLE REEL
RH ARM
LH ARM
CENTER ARM - DOUBLE REEL
LH ARM
RH ARM
