UNLOADING AND ASSEMBLY
Form 169007 15 Revision D

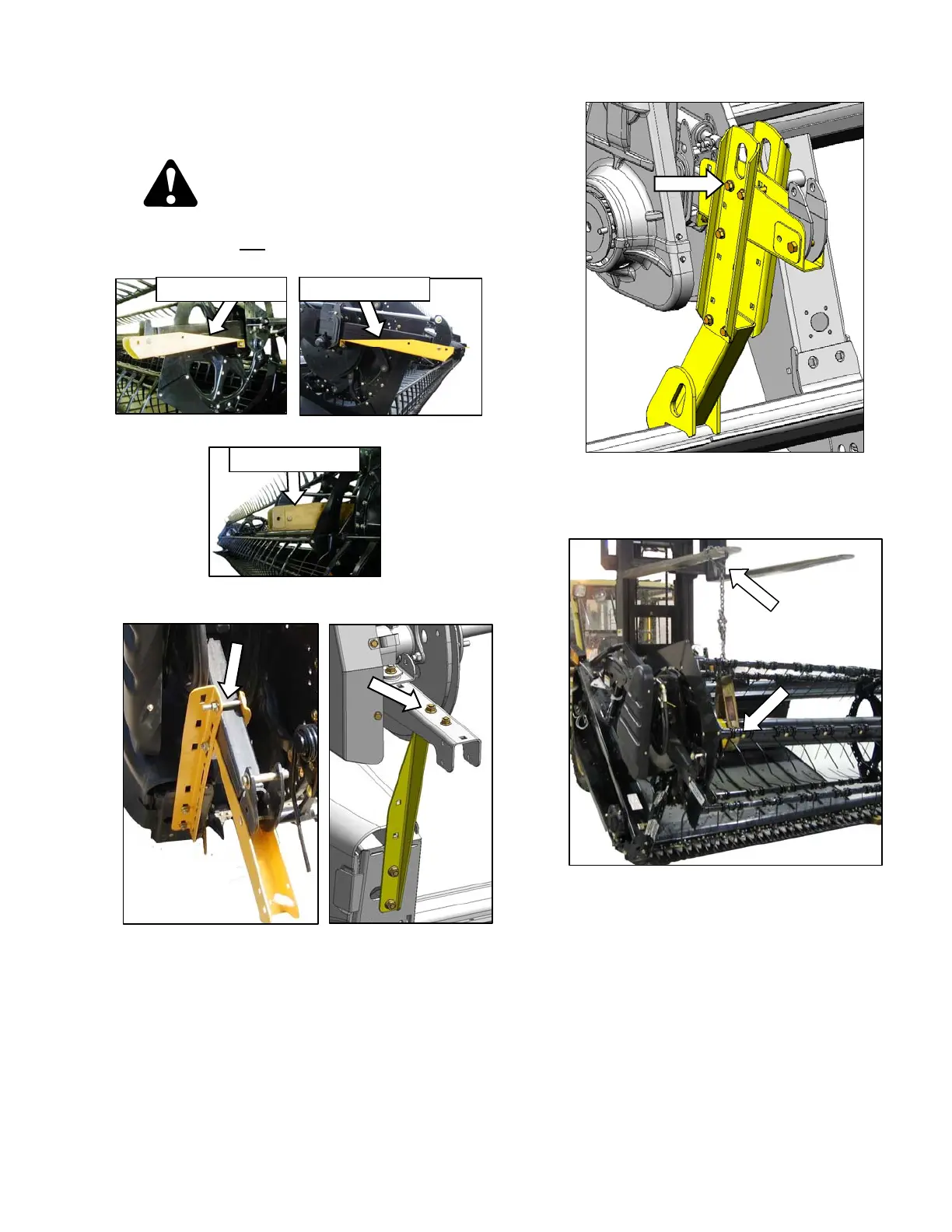

STEP 4. ATTACH REEL LIFT
CYLINDERS
CAUTION
Braces On Reel Arms Keep Reel From Sliding
Forward. Do Not Remove.
a. Remove top bolt on outboard reel arm supports.
b. Remove two top bolts on center reel arm support.
(DOUBLE REEL ONLY).
c. Position sling around the reel tube close to
outboard end of reel, and attach sling to a forklift
(or equivalent).
d. Remove shipping wire/banding from cylinder, and
remove pins from lug and arm.
e. Lift reel so that reel lift cylinder mounting holes line
up with lug on endsheet and hole in reel arm.
(continued next page)
DOUBLE REEL SUPPORT
D60 REEL SHOWN
D60 REEL SUPPORT
D50 REEL SUPPORT
CENTER ARM - D60 DOUBLE REEL
LH ARM - D60
RH ARM - D60
D
O
N
O
T REM
O
VE
D
O
N
O
T REM
O
VE
D
O
N
O
T REM
O
VE
