UNLOADING AND ASSEMBLY
Form 169007 33 Revision D

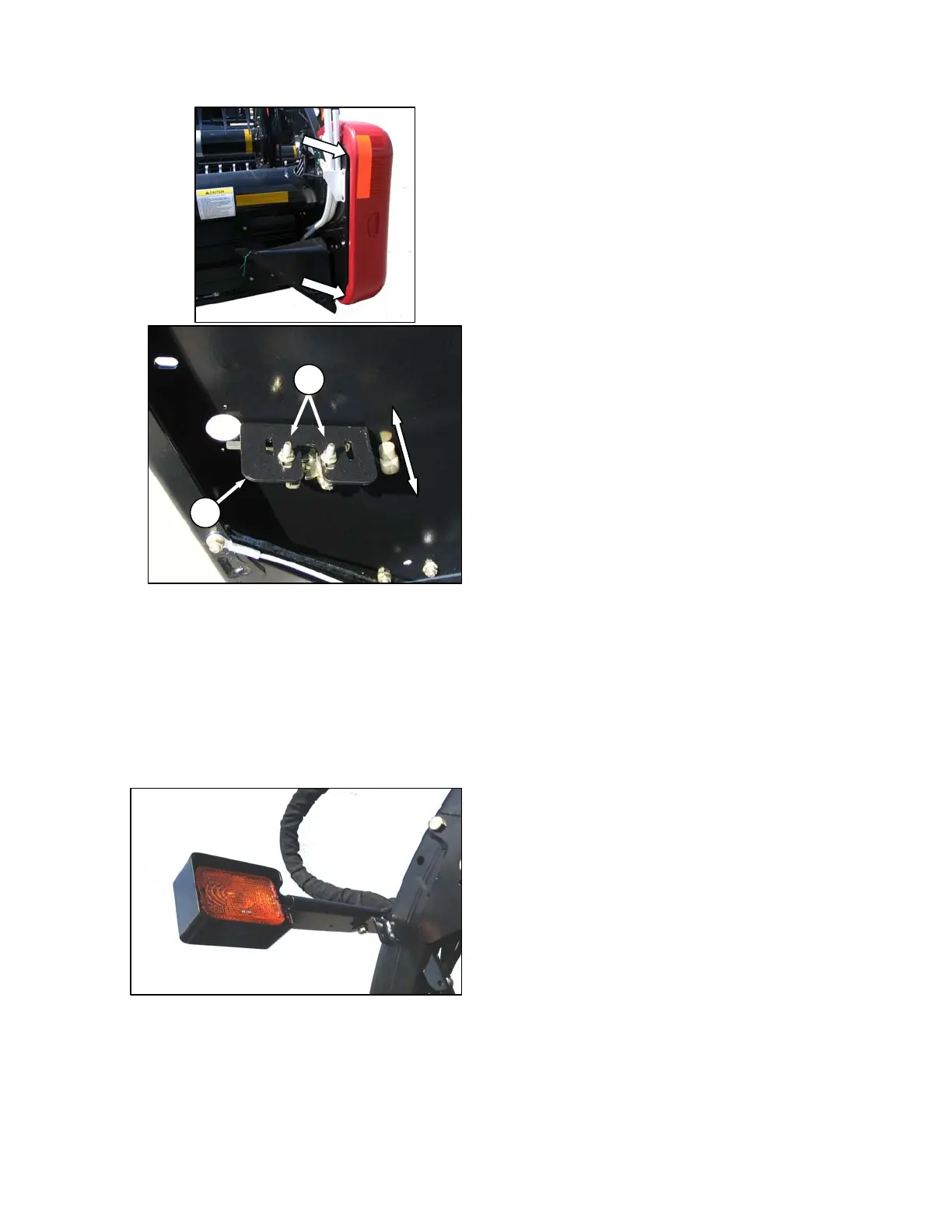

e. To achieve a snug fit between the aft end of the
shield and header frame, loosen bolts (F), and
adjust the latch (G) to re-position the shield.
f. Tighten bolts (F).
STEP 13. ADJUST TRANSPORT
LIGHTS
a. Position light perpendicular to header. Lights are
located on each of the outboard reel arms.
STEP 14. INSTALL OPTIONS
Optional attachments and kits may have been
supplied with the header, and should be installed
at this time.
They include all necessary hardware and
installation instructions.
