MacDon D60 - Reel Tine to Cutterbar Clearance

PRE-DELIVERY INSPECTION
Form 169007 40 Revision D

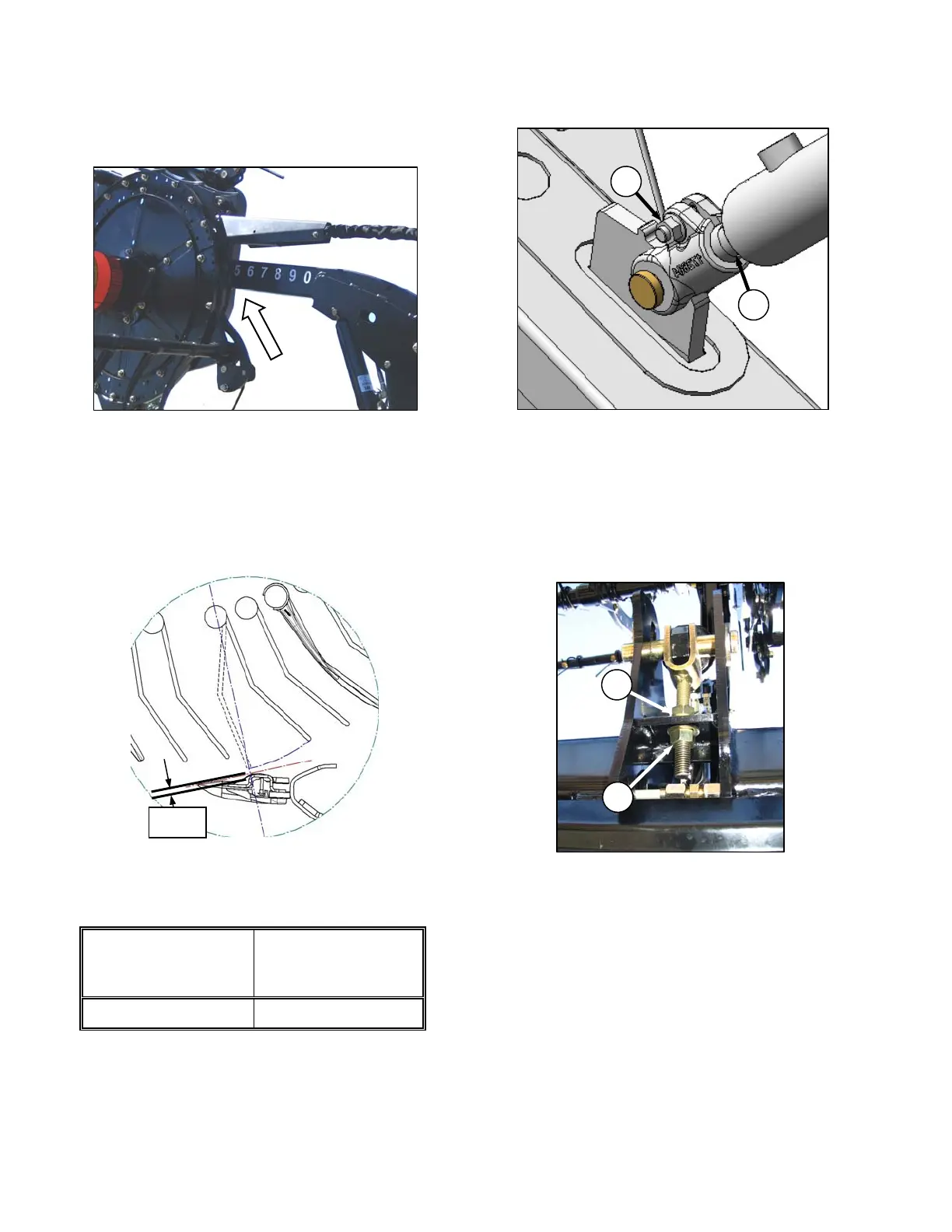

I. REEL TINE TO CUTTERBAR
CLEARANCE
a. Adjust fore-aft reel position so that back end of
cam disc is approximately between 4 and 5 on
the arm decal.
b. Fully lower the reel.
c. Rotate reel manually to determine which finger is
closest to cutterbar (within 12 in. (300 mm)) of
endsheets.
d. Flex fingers back as shown to check clearance
‘X’. Refer to chart for allowable clearances.
‘X’ +/- 0.12 in. (3 mm)
At Endsheets
‘X’ +/- 0.12 in. (3 mm)
At Sectors Next to
Drive At Center Arm
0.78 in. (20 mm) 1.56 in. (40 mm)
e. If required, adjust outside reel arms as follows:
1. Loosen nut (A).
2. Turn cylinder rod (B) counter clockwise to
raise reel and increase clearance to
cutterbar, or clockwise to decrease.
3. Tighten nut (A).
4. Repeat at opposite side.
f. If applicable, adjust center arm as follows:
1. Loosen nut (C).
2. Turn nut (D) clockwise to raise reel and
increase clearance to cutterbar, or counter
clockwise to decrease.
3. Tighten bolt (C).
A
B
A
B
DOUBLE REEL - LOOKING UP
AT ARM UNDERSIDE
C
D
X
