UNLOADING AND ASSEMBLY
Form 169007 19 Revision D
CAUTION
Check to be sure all bystanders have cleared
the area.

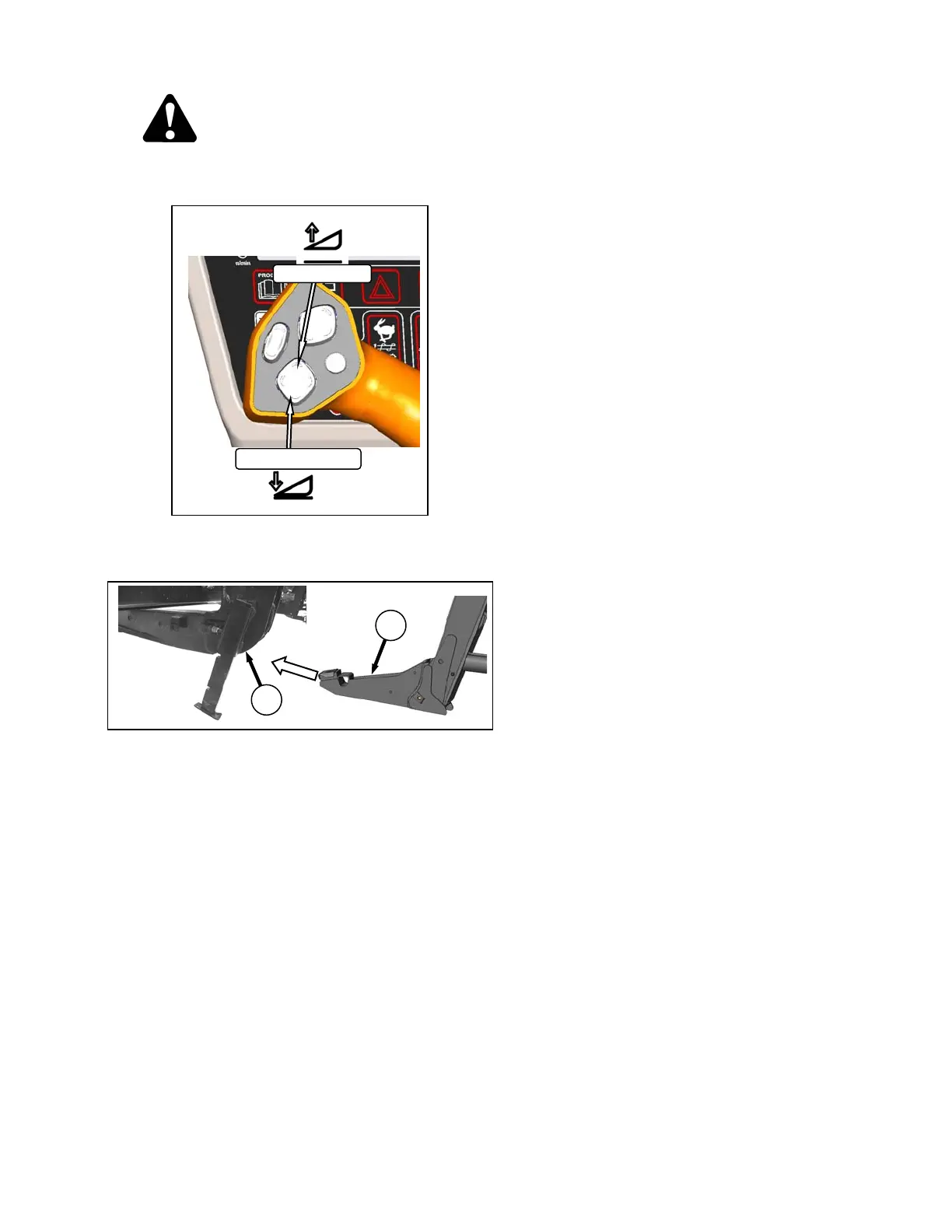

c. Start engine, and activate HEADER DOWN switch
on the GSL to fully retract header lift cylinders.
d. Slowly drive windrower forward so that boots (D)
enter header legs (G). Continue to drive slowly
forward until linkages contact support plates in the
lower header legs, and header nudges forward.
e. Check that linkages are properly engaged in
header legs, contacting support plates.
HEADER UP
HEADER DOWN
D
G
