UNLOADING AND ASSEMBLY
Form 169007 31 Revision D
D

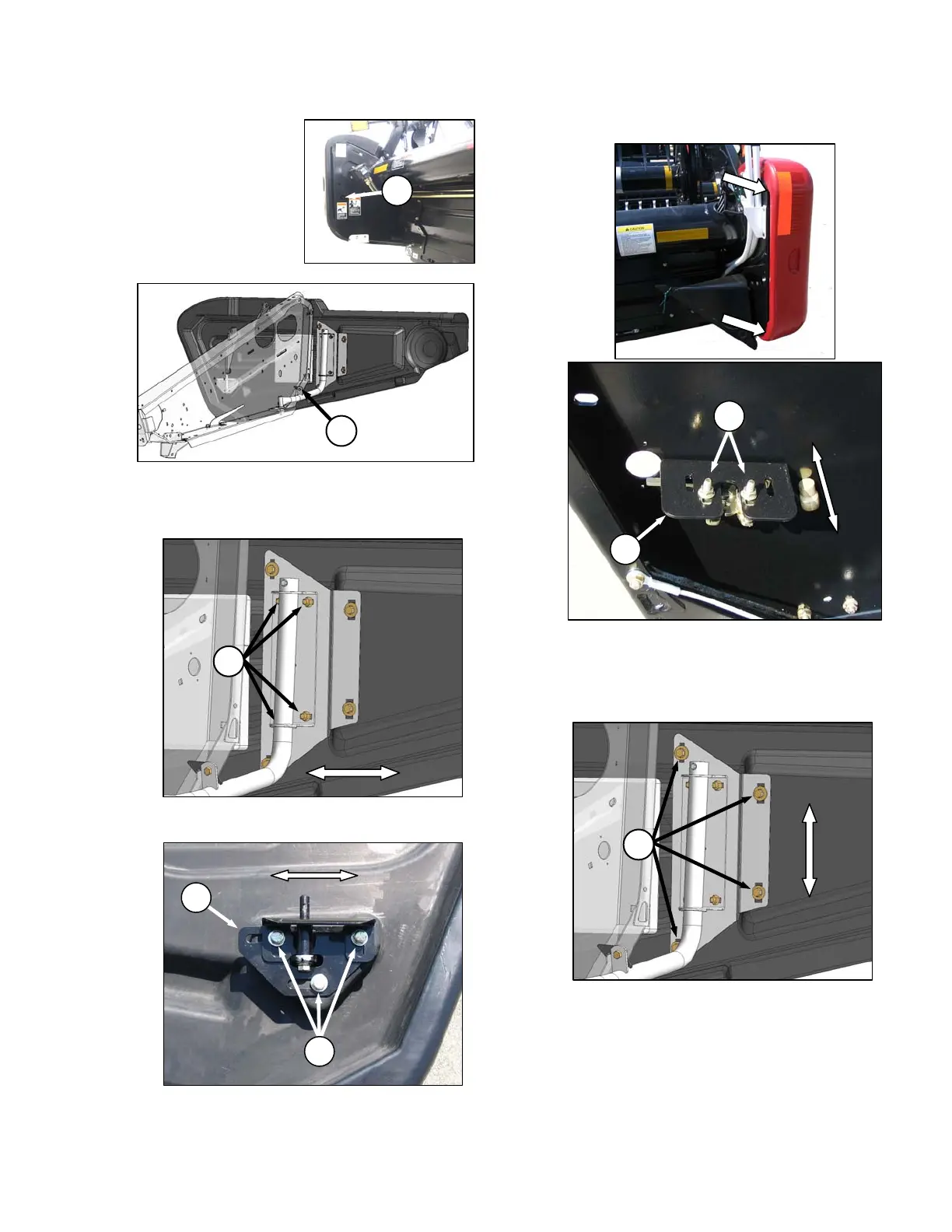

h. If required, adjust as follows:
1. Open endshield
by pressing
against latch in
opening at (D) on
inboard side of
endsheet.
2. Pull shield away from header, and swing it out
and back behind the endsheet until the latch
(B) engages the hook on the endsheet.
3. Loosen bolts (E) on support.
4. Loosen bolts (F) on latch assembly (G).
5. Adjust latch assembly (G) to achieve
appropriate gap ‘X’ in chart (previous page).
6. Tighten bolts (E) and (F).
i. To achieve a snug fit between the aft end of the
shield and header frame, loosen bolts (H), and
adjust latch assembly (J) to re-position the shield.
j. Loosen bolts (K) on endshield support, and adjust
endshield to align with endsheet as shown above.
k. Tighten bolts (H) and (K).
l. Close endshield.
F
G
E
B
H
J
K
To Next Page
