MacDon M155 - 3 Operator’s Station

INSTALLING DRIVE WHEEL

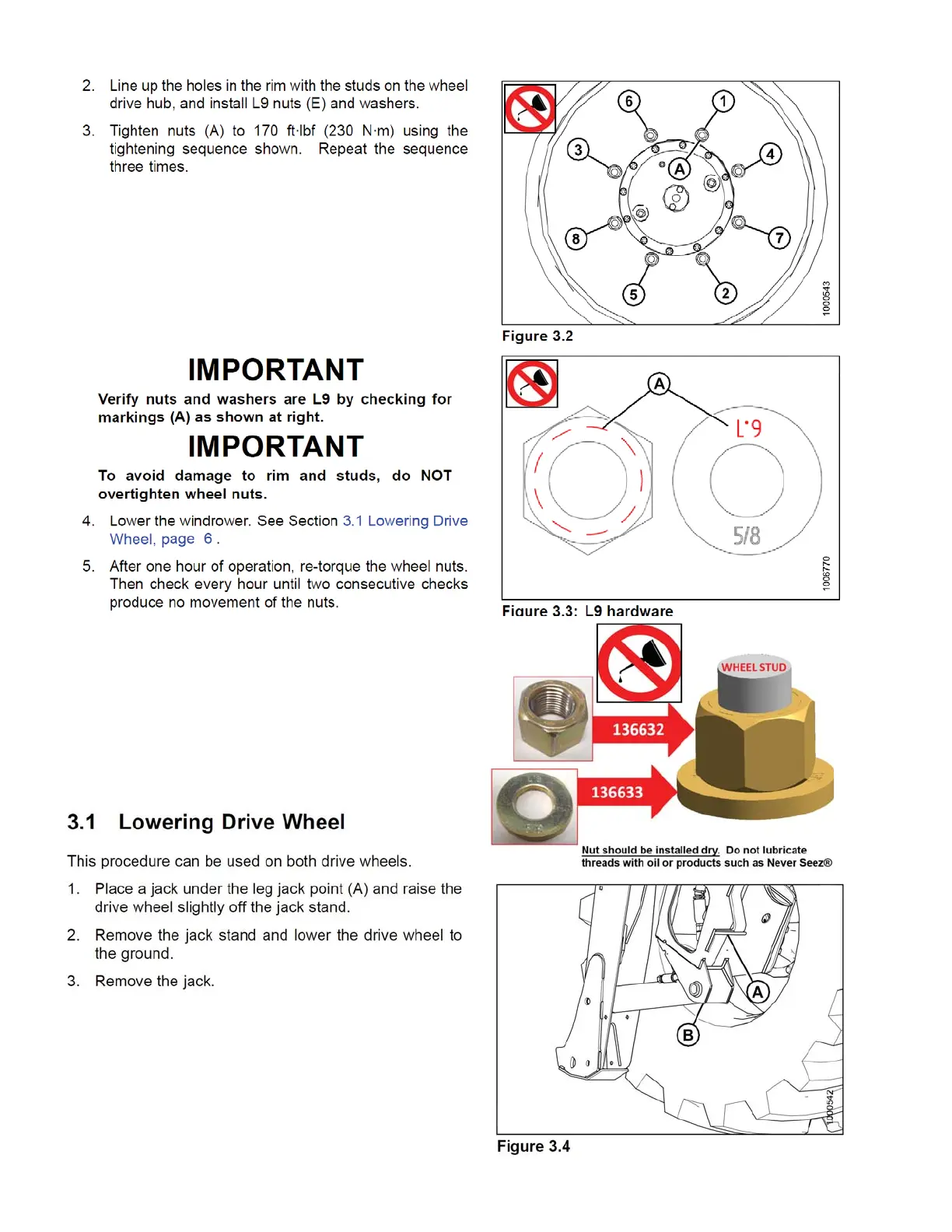

3.1 Lowering Drive Wheel
This procedure can be used on both drive wheels.
1. Place a jack under the leg jack point (A) and raise the
drive wheel slightly off the jack stand.
2. Remove the jack stand and lower the drive wheel to
the ground.
3. Remove the jack.
Figure 3.4
169469_SUPPLEMENT
6 Rev. F


Replaces Page 324 in M205 Op Manual
324
