MAINTENANCE AND SERVICING
169552_Supplement Revision D Page 7 of 8

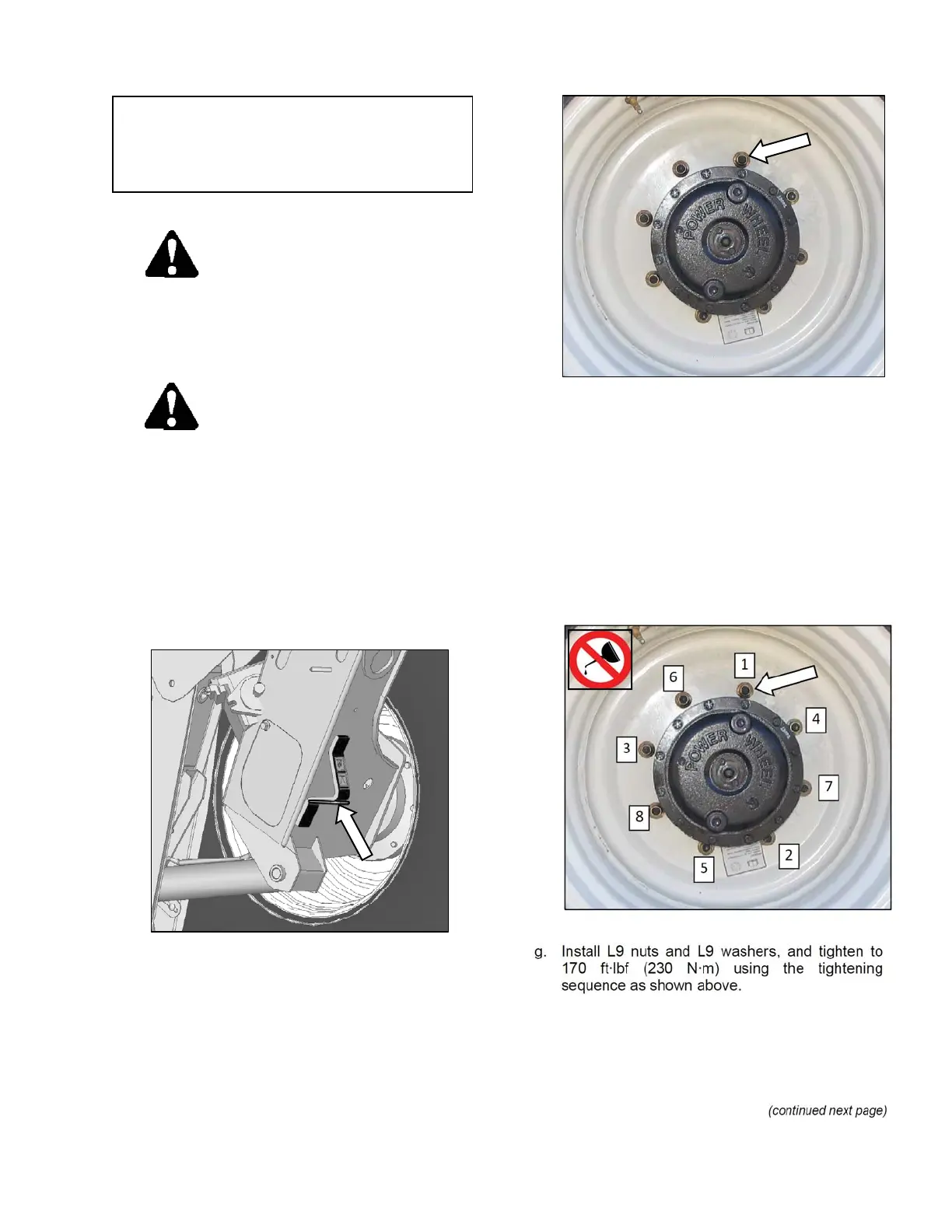

7.12.1.4 Drive Wheel Removal/Installation
DANGER
To avoid severe personal injury or death
caused by machine runaway, shut off
engine, and remove key before performing
any of the following checks and/or
adjustments.
CAUTION
Header MUST be remove
d, and NO weight
box
installed. Use a hydr
aulic jack with
minimum
lifting capacity of 5000 lb
(2268 kg) to provide
adequate support fo
r
the machine.
a. Remove header.
b. Park windrower on level ground, and block all
wheels.
c. Place Ground Speed Lever (GSL) in N-
DETENT, shut down engine, and remove key.
d.
Jack up windrower under leg jack point, and
raise windrower wheel slightly off ground.
e. Undo wheel nuts, and remove wheel.
NOTE
To install new tire, ensure that air valves
are on the outside, and tire tread points
forward.
NOTE
For Turf tires (diamond tread), be sure
arrow on sidewall points in forward
rotation.
f. Place wheel on hub.
(continued next page)
Follow this procedure instead of the one
provided on page 186 in the original
manual.
186
Replaces Page 186 in M105 Op Manual
