Mackie XR624 User Manual

6
XR SERIES MONITORS
XR Series Monitors
Hookup Diagrams
POWERUSBPHANTOM
TO MON
MONITOR
PHONES
INPUT
MONITOR
HI-Z
LINE
HI-Z
LINE
STEREO
MONO
GAIN
1 2
SIG/OL
SIG/OL
2x2 USB RECORDING INTERFACE
MAX
OO
MAX
OO
MAX
OO
+45dB-15dB
U
20
30
40
60
GAIN
U
+45dB-15dB
U
20
30
40
60
U
LOW FREQ
36Hz
(NORMAL)
80Hz
POWER MODE
(BAL / UNBAL)
LOW FREQ
36Hz
(NORMAL)
80Hz
POWER MODE
(BAL / UNBAL)
36Hz
36Hz
LOW FREQ
36Hz
(NORMAL)
80Hz
POWER MODE
(BAL / UNBAL)
LOW FREQ
36Hz
(NORMAL)
80Hz
POWER MODE
(BAL / UNBAL)
36Hz
36Hz

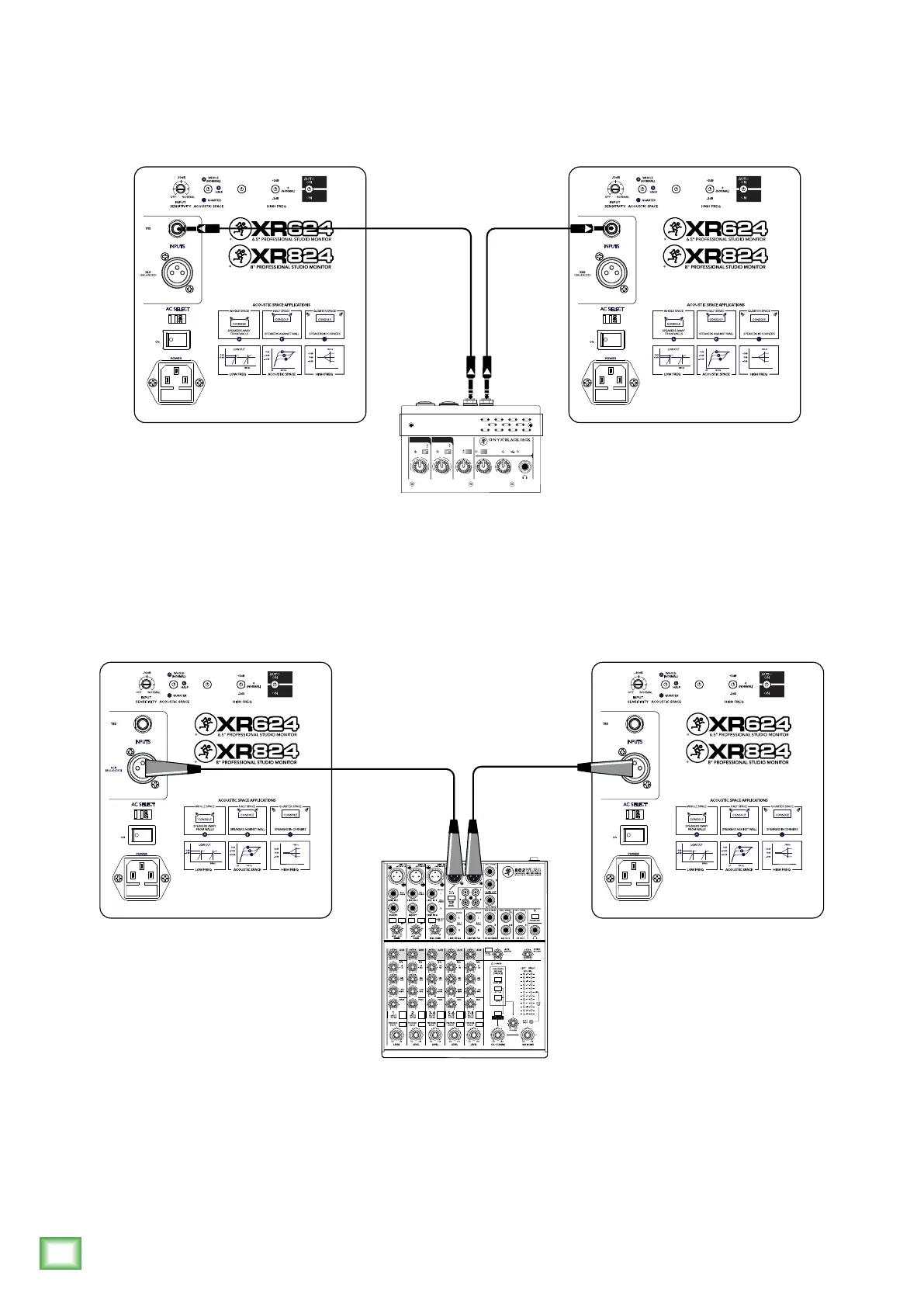

In this example, an Onyx Blackjack interface is connected directly to two XR Series monitors.
In this example, an 802VLZ4 mixer is connected directly to two XR Series monitors.

Mackie XR624 Specifications

General

Tweeter	Yes
Speaker type	2-way
Woofer diameter	165 mm
Tweeter diameter	25 mm
Number of drivers	2
Speaker placement	Tabletop/bookshelf
Audio output channels	1.0 channels
Number of tweeter drivers	1
Woofer diameter (imperial)	6.5 \
Tweeter diameter (imperial)	1 \
Bluetooth	No
Connectivity technology	Wired
Frequency range	45 - 22000 Hz
RMS rated power	160 W
Crossover frequency	2700 Hz
Product color	Black
Housing material	MDF
Recommended usage	Studio
Current	16 A
AC input voltage	100 - 120/220 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	150 W
Amplifier class	D

Weight and Dimensions

Depth	257 mm
Width	211 mm
Height	333 mm
Weight	6700 g
