© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 11
Rev. Date 040218

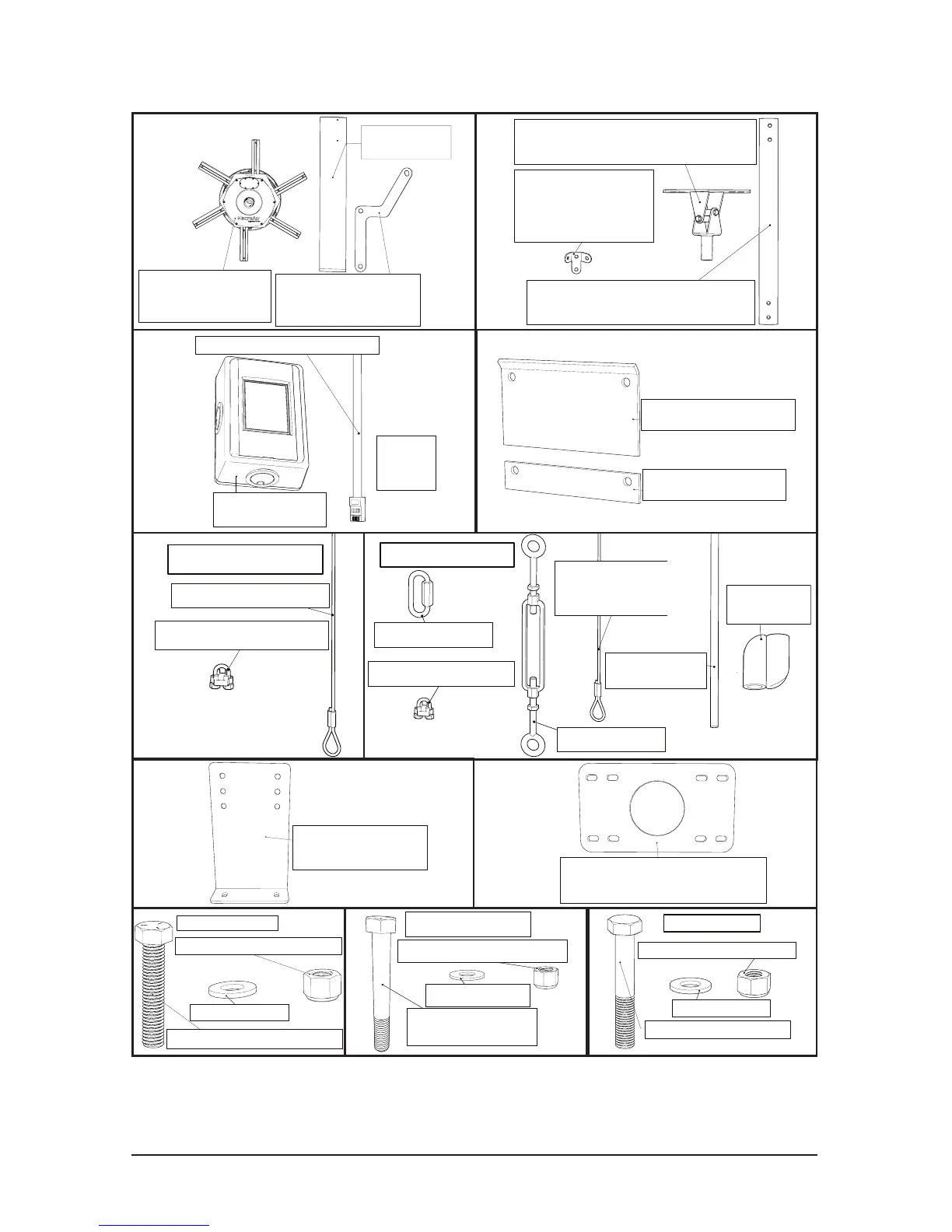

Airfoil Retainer
Link (6)
Airfoil (6)
AVD 550/780
Motor Unit (1)
I-Beam Shim (2)
I-Beam Clamp (2)
Extension Tube (1)
Universal Mount (1)
Guy Wire
Bracket (2)
Touchpad Digital
Remote (1)
Stranded Shielded CAT5e (1)
RJ45
Pin-Out
Type “B”
Guy Wire Assembly
Wire Rope (4)
19ft (A), 23ft (B),
or 33ft (C)
Turn Buckle (4)
1/4" Quicklink (4)
Wire Rope Clamp (8)
Wire Rope Clamp (2)
Safety Cable Parts
Wire Rope 3/16” (1)
Components (Universal Mount)
Glulam Bracket (2)
(Optional)
Noise Dampening Pad (1)
(Optional)
5/16"-24 x 2" Hex Bolt (12)
5/16" Washer (24)
5/16"-24 Nylon Lock Nut (12)
6 Blade Bolt Kit
3/8" Washer (4)
3/8"-16 Nylon Lock Nut (4)
3/8"-16 x 2 3/4" Hex
Head Bolts (4)
3/8" Washer (8)
Extension Bolt Kit
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit
Make sure all parts listed above are included if you purchased the Universal Mount.
Read the entire manual before beginning the installation of the fan. Additional parts
may be required, including, but not limited to, guy wire attachment hardware, extra
cable, Unistrut, and bolts for Glulam mounting. Power cable is not provided.
