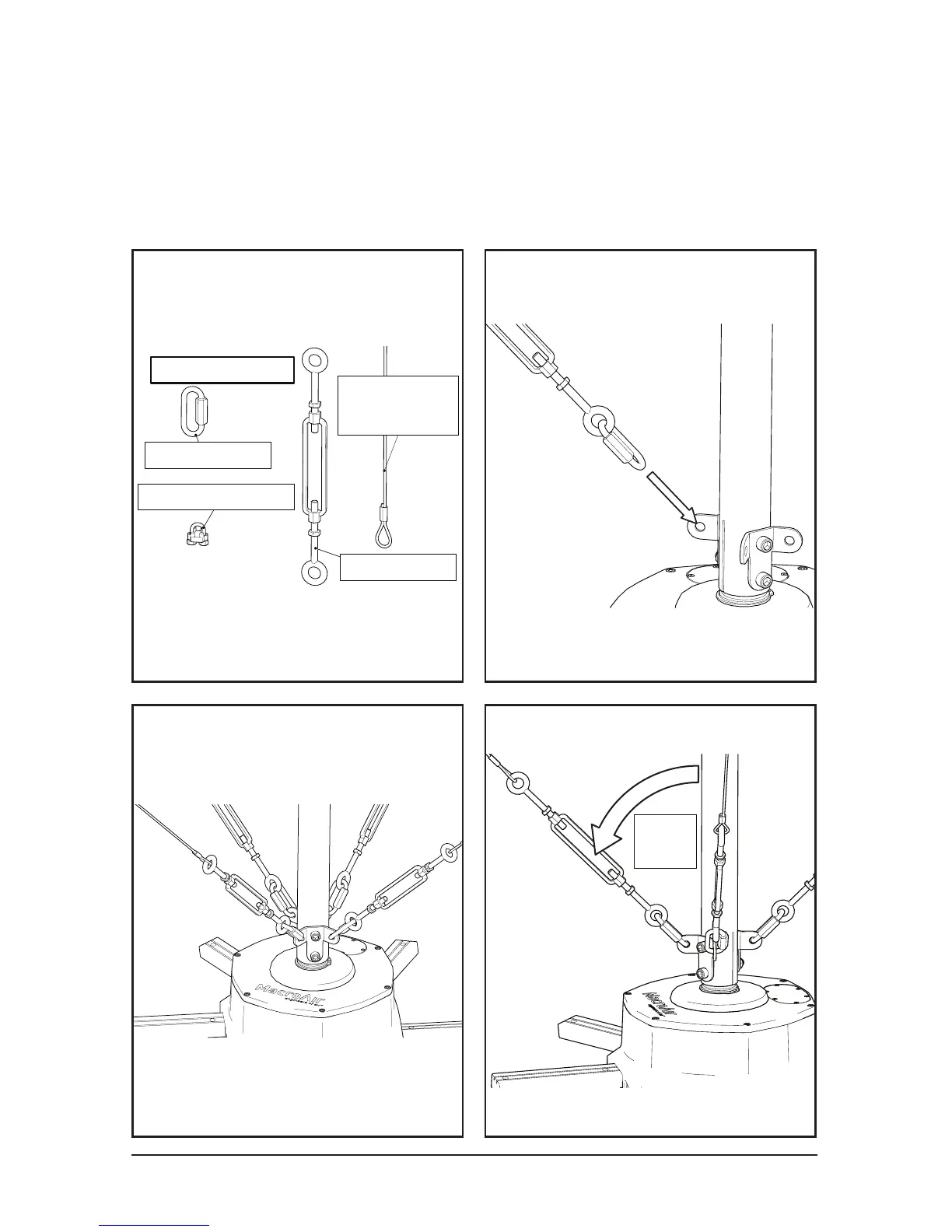

3. Guy Wire Installation
Guy Wire Assembly
Wire Rope (4)
19ft (A), 23ft (B),
or 33ft (C)
Turn Buckle (4)
1/4" Quicklink (4)
Wire Rope Clamp (8)
45°
Required for the Universal Mount.
Optional for the Rapid Mount Industrial. With the Rapid Mount
Industrial, use only when the building or environment conditions
require. Guy wire brackets must be installed to the base of the
Rapid Mount Extension Tube (see page 25).
