7.2 Touchpad Remote Operation

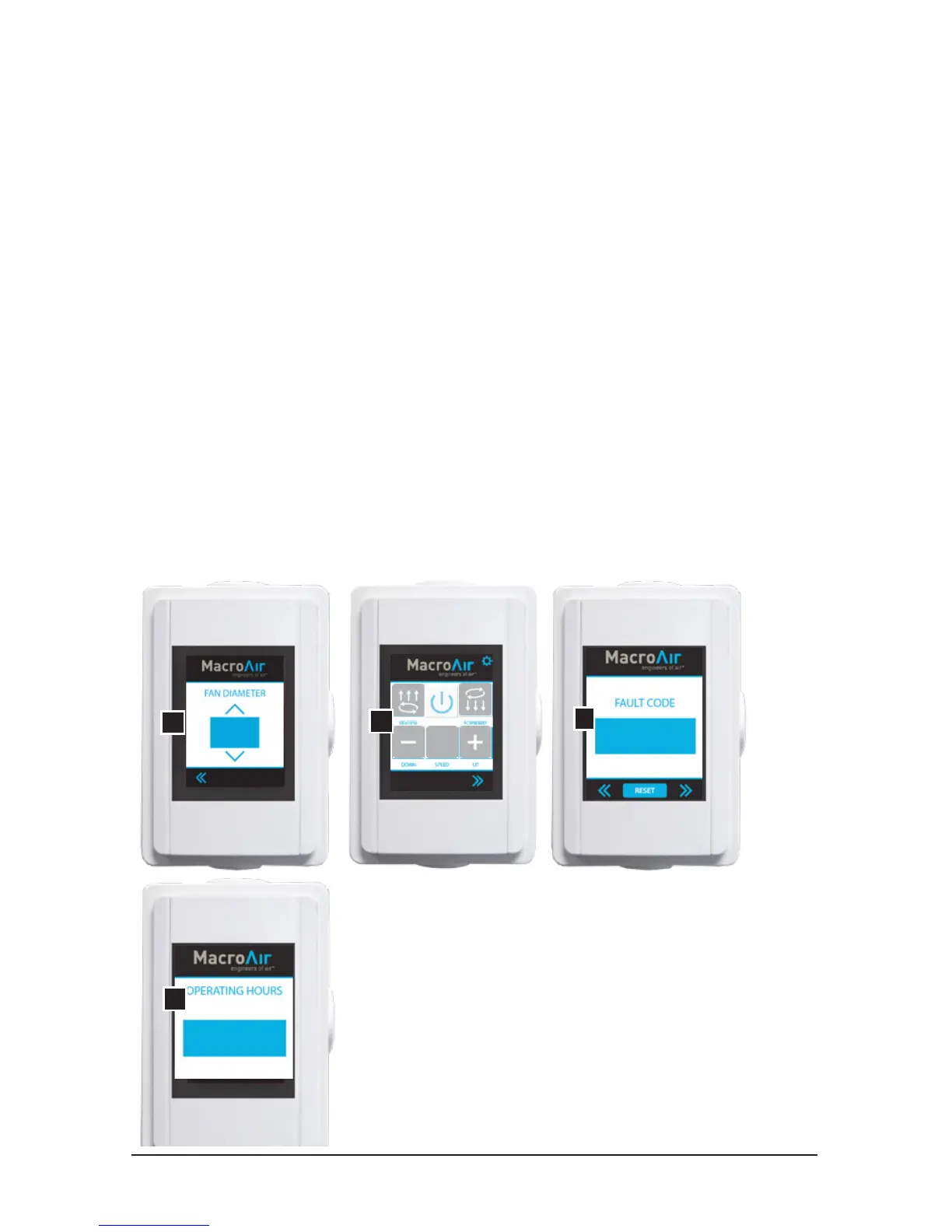

Screens:
A - Fan Diameter Selection Screen
B - Home Screen
C - Fault Code Screen
D - Operating Hours Screen
Instructions:
6.2.1: Upon initial power-up, the touchpad remote will default to the fan diameter auto detect
screen. You will need to select “6 blades” to initiate the auto detect. While the auto detect is
running you will not be able to leave the screen until the sequence is nished. Once the startup
sequence is completed you will be able to leave the screen by hitting the left arrows in the footer
to navigate to the home screen.
6.2.2: Once on the home screen, test your fan by setting the speed to 100 in forward operation by
increasing the speed and then clicking the forward button. Keep the fan’s speed at 100 for a few
minutes to ensure proper functionality.
6.2.3: If the fan stops operating unexpectedly, navigate to the fault code screen and record any
fault codes (if present). Click the reset button until the display reads ‘0’ or none. Then, attempt
to run the fan again. If the fan is still not operating, navigate to the fault code screen via the
navigation arrows at the bottom of the screen and document the code(s) displayed and call
technical support at 866-668-3247.
6.2.4: To view your fan’s operating hours, navigate from the home screen to the far right screen.
