MacroAir Technologies AirVolution-D 780 - Universal Mount Glulam

© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 18
Rev. Date 040218

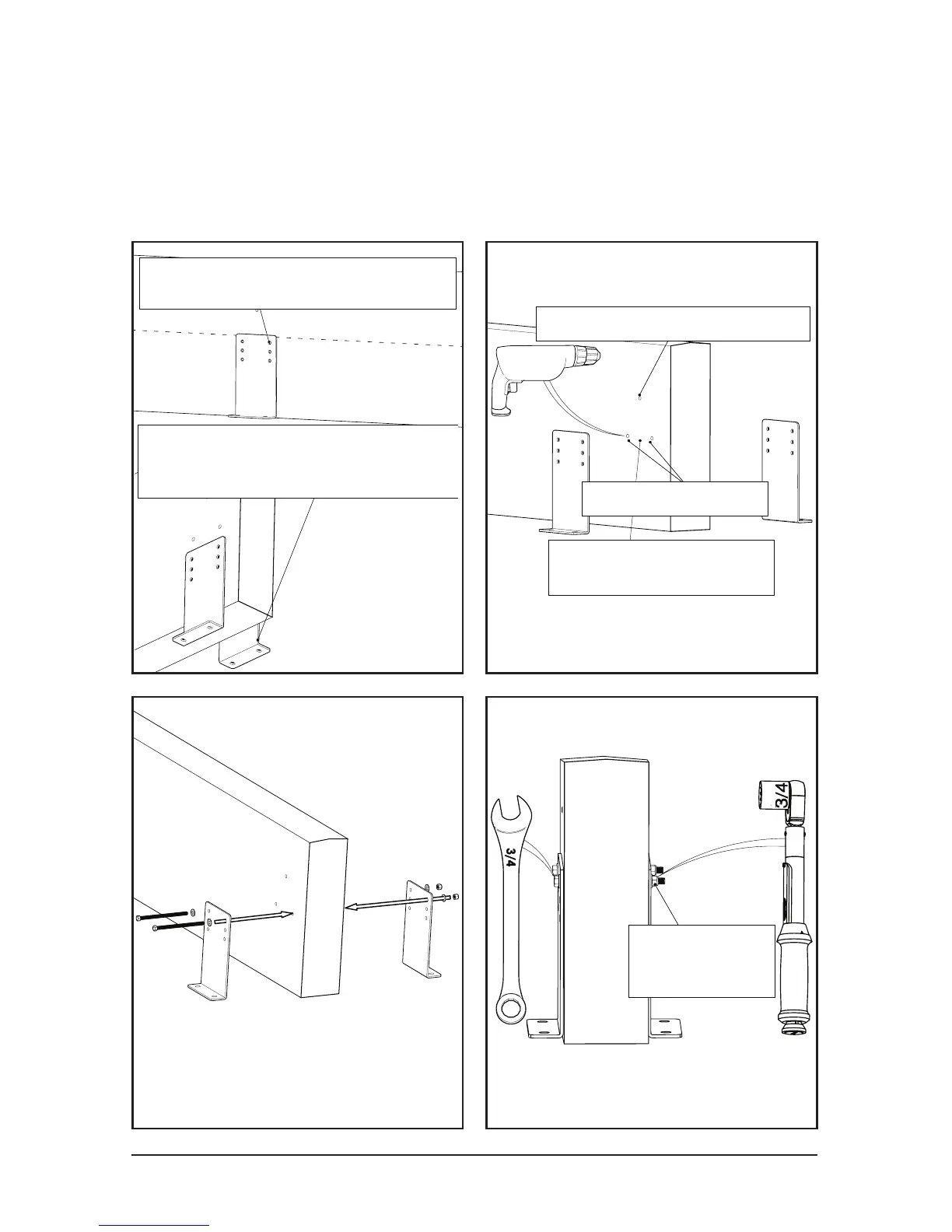

Use the two holes closest to
the center line of the glulam.
3/16" safety cable clearance
Holes can be oversized
for leveling the mount
1/2" bolt clearance
75 ft lbs
75 ft-lbs
[102 N-m]
The bracket can be below the bottom
of the glulam if necessary but
is not recomended if it is avoidable.
This method is recommended for Glulams or wood beams 5-1/8” or
wider. For narrower beams, span across two or more beams using the
Unistrut mounting method.
1.1.2 Universal Mount Glulam
