4.2 Control Wiring
Analog Control Wiring
Stranded Shielded
CAT5e only
NOTE: Fans must be ordered for analog control as they require
network conguration to enable analog terminals.

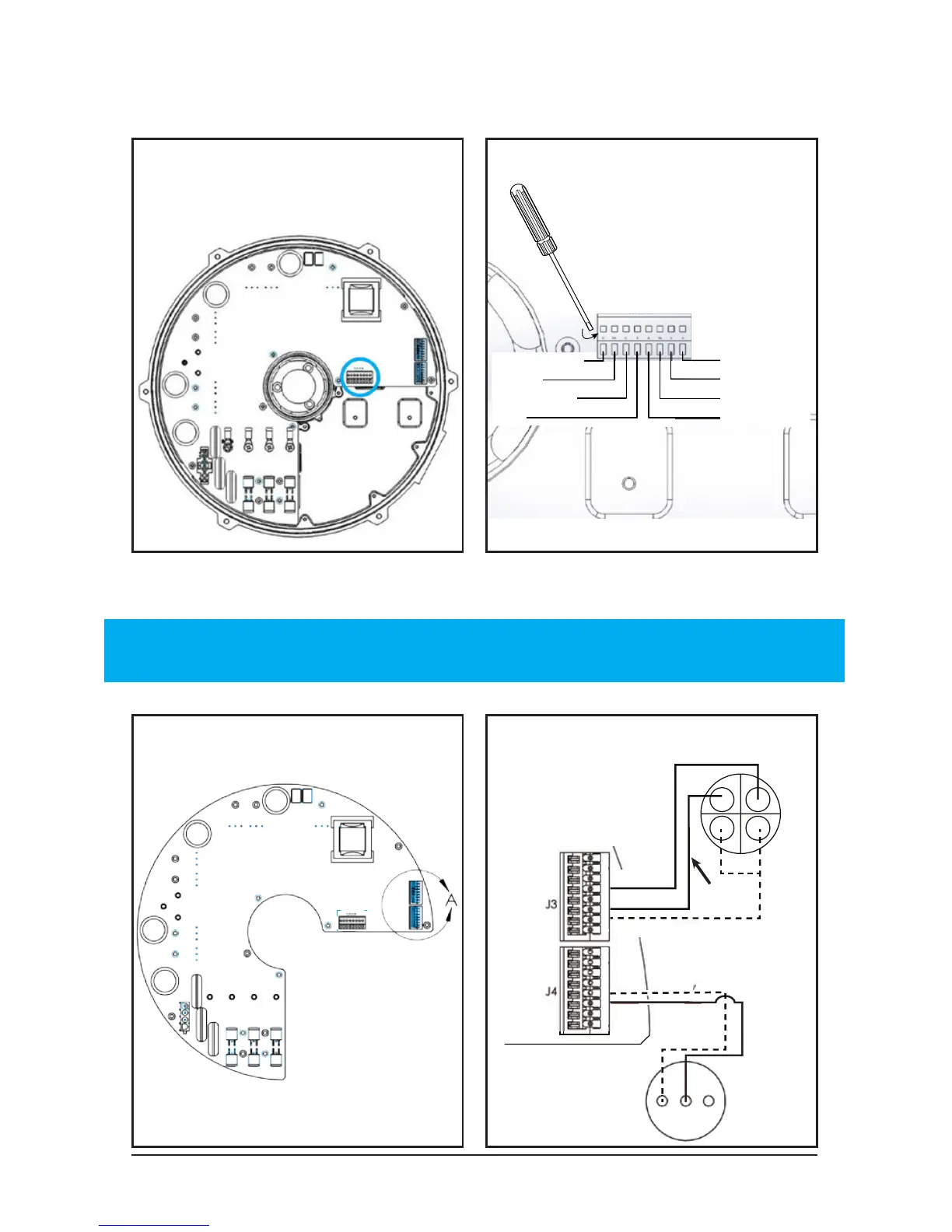

Digital Control Wiring
Use a at head screwdriver to press the small button on top of
the terminal block to securely attach the wires.
Orange
Orange/White
Brown/White
Green
Blue/White
Blue
Green/White
Brown
RTN
FOR/OFF/REV SWITCH
(VIEWED FROM BACK)
Forward
Reverse
Common
Speed
Detail A
SPEED POT
(VIEWED
FROM BACK)
Speed
IN 3
IN 4
RTN
Green
Blue
Blue/White
Green/White
IN 5
Brown
