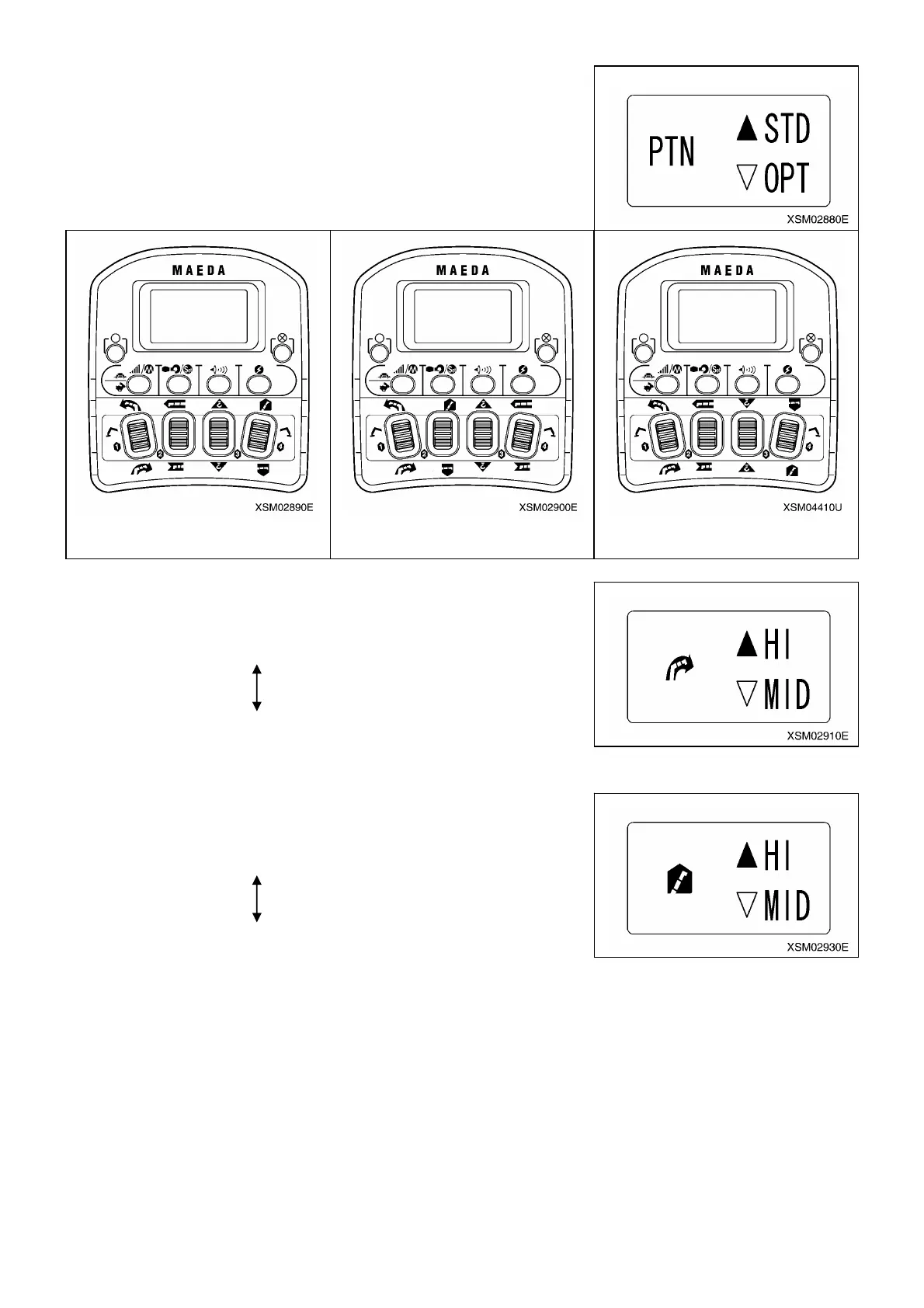

2. Items for setting the initial mode for service:
(1) Pattern
Allow you to change the operating pattern. There are 3 patterns of STD, OPT or
US patterns.
㧖At the time of factory shipment, this is set as US.
(2) Slew
For changing the gain in slewing.
There are 3 selections of HI, MID and LOW.
㨯 HI : Increase the gain.
㨯 MID :
㨯 LOW: Reduces the gain.
*At the time of factory shipment, this is set at HI.
*Do not set it besides "HI" for reasons of the structure of the valve.
(3) Boom Raising and Lowering
For change the gain in boom raising and lowering.
There are 3 selections of HI, MID and LOW.
㨯 HI : Increase the gain.
㨯 MID :
㨯 LOW: Reduces the gain.
*At the time of factory shipment, this is set at HI.
*Do not set it besides "HI" for reasons of the structure of the valve.
OPT pattern
STD pattern
US pattern
159
