CONTROL ELEMENTS
Heating/ventilation/air conditioning
Operating manual MT 32 / 36 47
Air flow for the driver's cab
Several air inlet and outlet nozzles are available for ventilating
the driver's cab. You can use these nozzles to defrost the win-
dows and to ventilate the interior. Some nozzles can be set
manually and thus change the direction of the airflow.

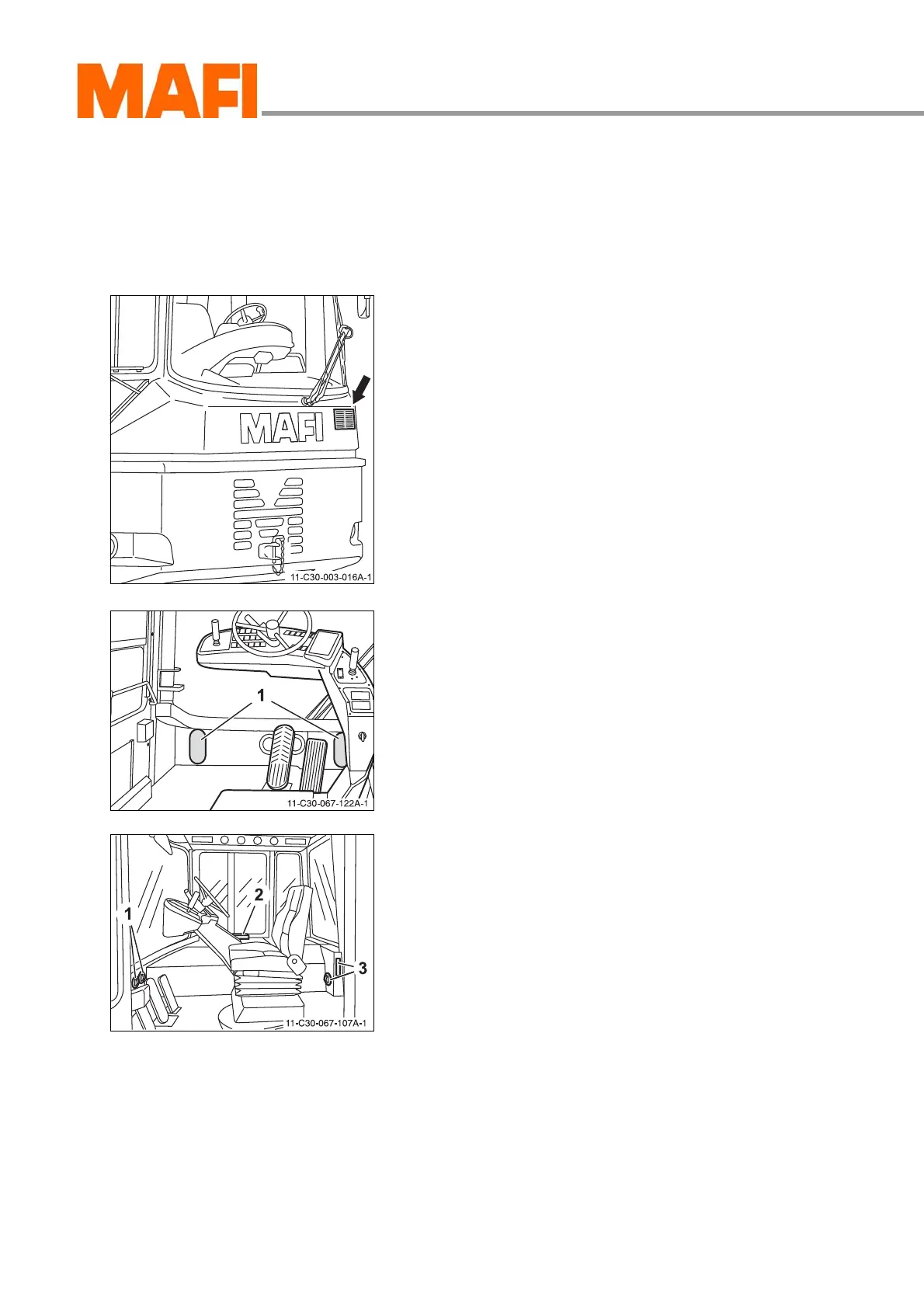

Fig. 22: Fresh air intake
Fig. 23: Circulation air intake
1 Intake
Fig. 24: Air outlet nozzles
1 Front windscreen
2 Side window, right (left)
3 Tail windscreen
