5. PART NAMES AND FUNCTIONS

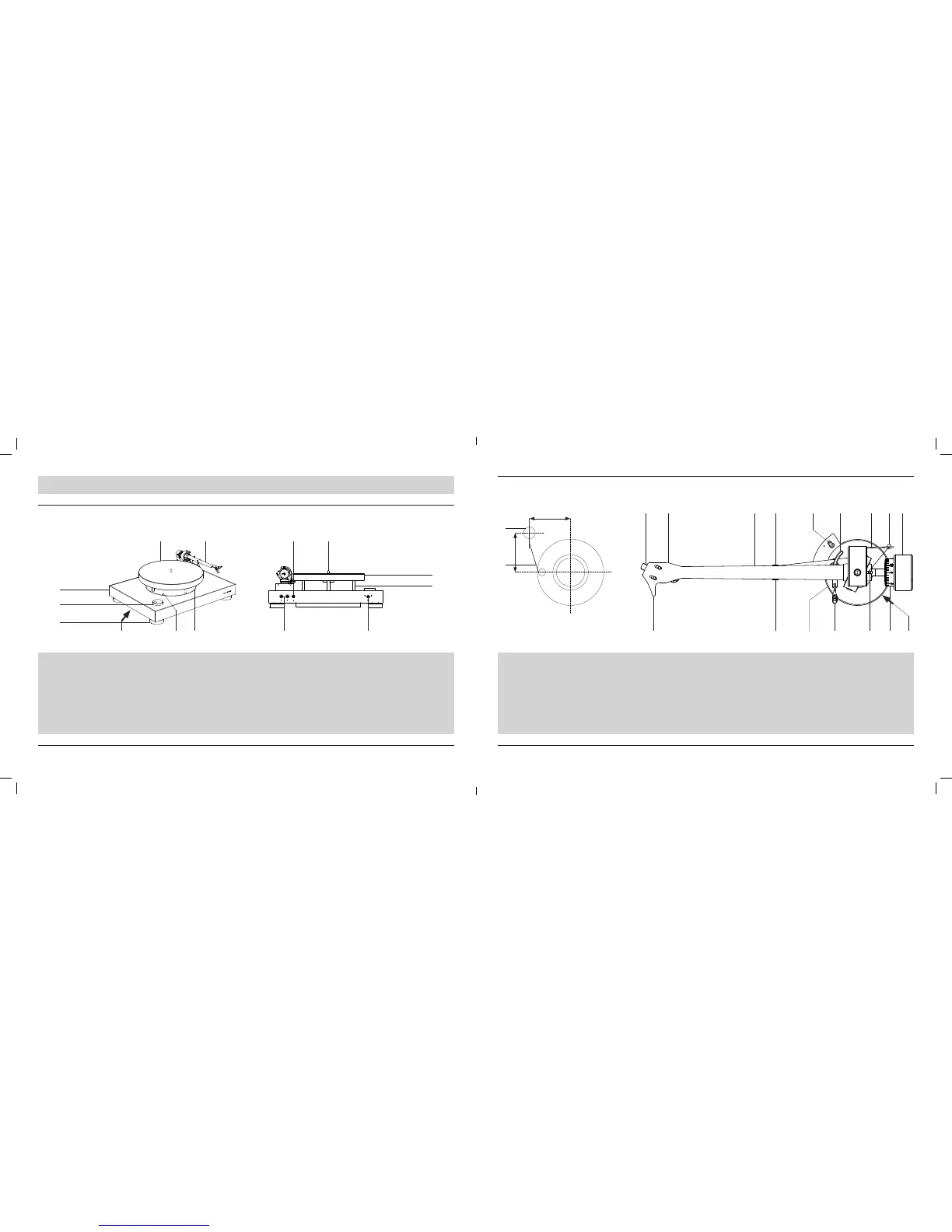

5.1. Overall diagram
5.2. Tonearm
1.a892155 1167
6 9128
1.b 14313 10412414 11 1310
1
9
8
3
7
2
5
1.a Counterweight
Balances the tonearm and adjusts to
provide the proper tracking force
1.b Downforce scale
Adjusts the downforce of the tonearm
2 Tonearm lift
Moves the tonearm vertically to and
from the face of the record
3 Tonearm lift lever / cueing lever
Operates the tonearm lift
4 Tonearm rest
5 Tonearm tube
6 Headshell
7 Cartridge
8 Anti-skating weight with wire
While the record is playing, a force acts on
the stylus tip to pull it inward. This force
can be counteracted by setting the same
values for anti-skate and the tracking
force.
1 Turntable body
Aluminum frame, plastic housing
2 Control Button
OFF/33.3 RPM/45 RPM/Levitation
3 Platter feet
4 LED light ring
5 Turntable feet
6 Tonearm
For details, refer to “Tonearm” on page 09
13 DC inlet
Insert a power cable here
14 Reset button
Under the turntable (page 38)
7 Levitating platter
9a Bottom channel for platter feet
9b Reective mirrors in the channel
8 Platter mat
9 Spindle
10 Sensors
Reading the speed of rotation
11 Analog RCA outlet
12 Grounding connector
9 Anti-skating weight support hoop
10 Anti-skating weight adjustment scale
11 Removable transport lock
12 Finger lift
13 Tonearm base
14 Tonearm base adjustment screw
15 Tonearm lift sensors
38 mm
37 mm
09
