17
Figure 20
Figure 19
Figure 18
CAUTION: Failure to follow instructions could result in serious injury�
Shut-Off the Range
1� Turn the manual shut-off valve to the
closed position�
2� Unplug range or disconnect power�

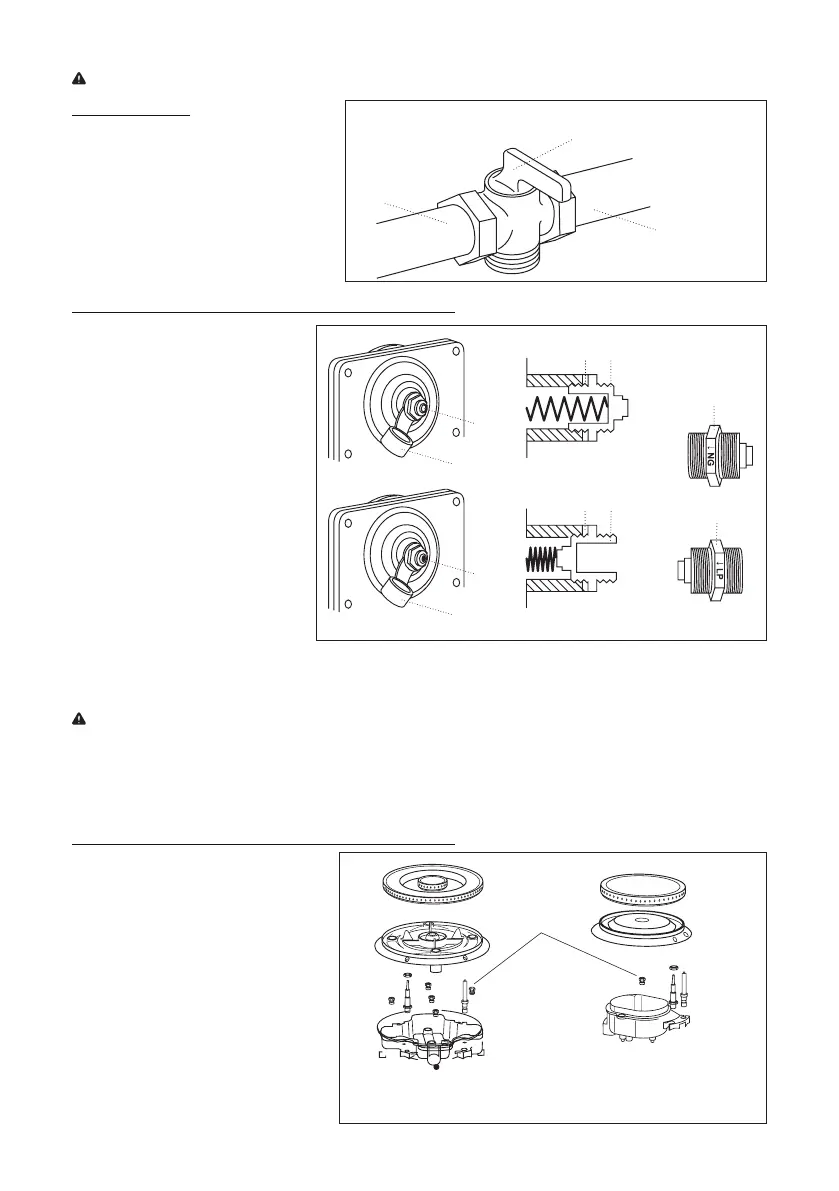

How to Convert Gas Pressure Regulator (Natural Gas to LP Gas)
Manual Shut-Off Valve
“Closed” Position
To Range
Gas Supply Line
b
c
a
a
d
d
e
e
e
e
1� Remove plastic cover from gas pressure regulator cap�
2� Turn gas pressure regulator cap counter-clockwise with a 5/8” wrench to remove�
NOTE: DO NOT remove the spring beneath the cap�
3� Remove the retainer pin that is currently positioned for use with Natural Gas�
4� Turn the retainer pin upside down and re-install into the regulator cap� It is now positioned for use with LP Gas�
5� Screw the regulator cap back into the regulator and reattach the regulator to the nipple and flare union�
How to Convert Gas Pressure Regulator (Natural Gas to LP Gas)
a
� Plastic cover
b� Gas pressure regulator
cap with solid end
facing out
c� Gas pressure regulator
cap with hollow end
facing out
d� Washer
e� Gas pressure regulator
cap
Section
View
Section
View
1� Remove the burner grates, burner
caps and burner heads�
2� Using a 7 mm nut driver, remove the
burner orifices�
3� Install the proper orifices in replace
of the ones that were removed�
4� Re-install the burner bases, heads and
top grates� Make sure the burner caps
are properly seated on the burner
heads�
Orifices
Triple-Ring Burner
5 Orifices
Auxiliary and Semi-
Rapid Burners
1 Orifice Each
To Next Page
