Magnetek DSD 412 - Figure 17: E-REG Tracking Profiles

DRIVE SETUP
71
E-Reg Velocity Tracking
Per-Unit Inertia Setting TOO HIGH, Velocity Under-Shoot

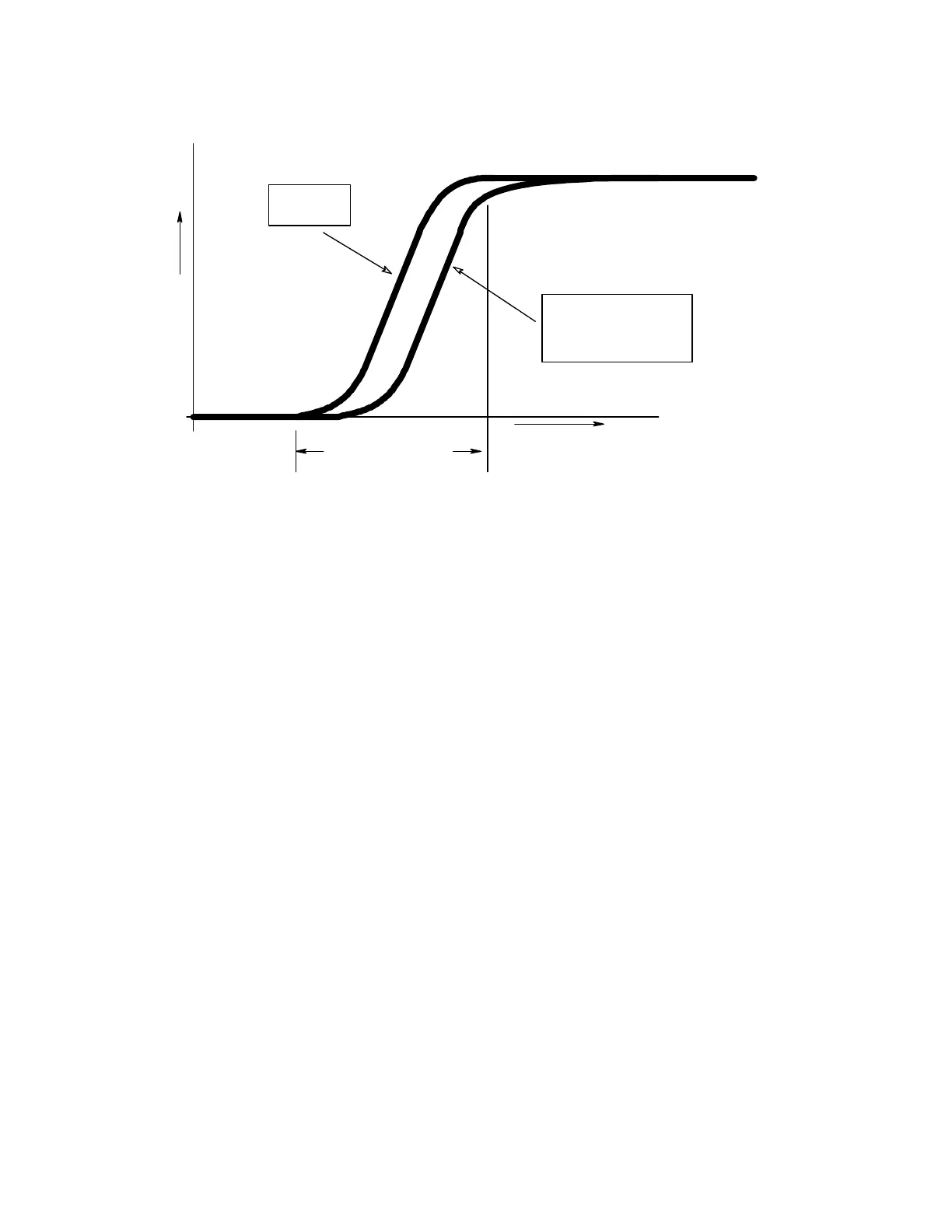

Figure 17: E-REG Tracking Profiles (3)
S
P
E
E
D
0
TIME
ACCEL TIME
ZERO
SPEED
Velocity
Reference
RATED SPEED
Speed Feedback with
Per-Unit Inertia (#41)
set too high,
Velocity Undershoot
