Magnetrol B73 - DIMENSIONAL SPECIFICATIONS in MM (Inches); OUTLINE DIMENSIONS in MM (Inches); ACTUATING LEVEL DIMENSIONS VS. SPECIFIC GRAVITY - MM (Inches)

7

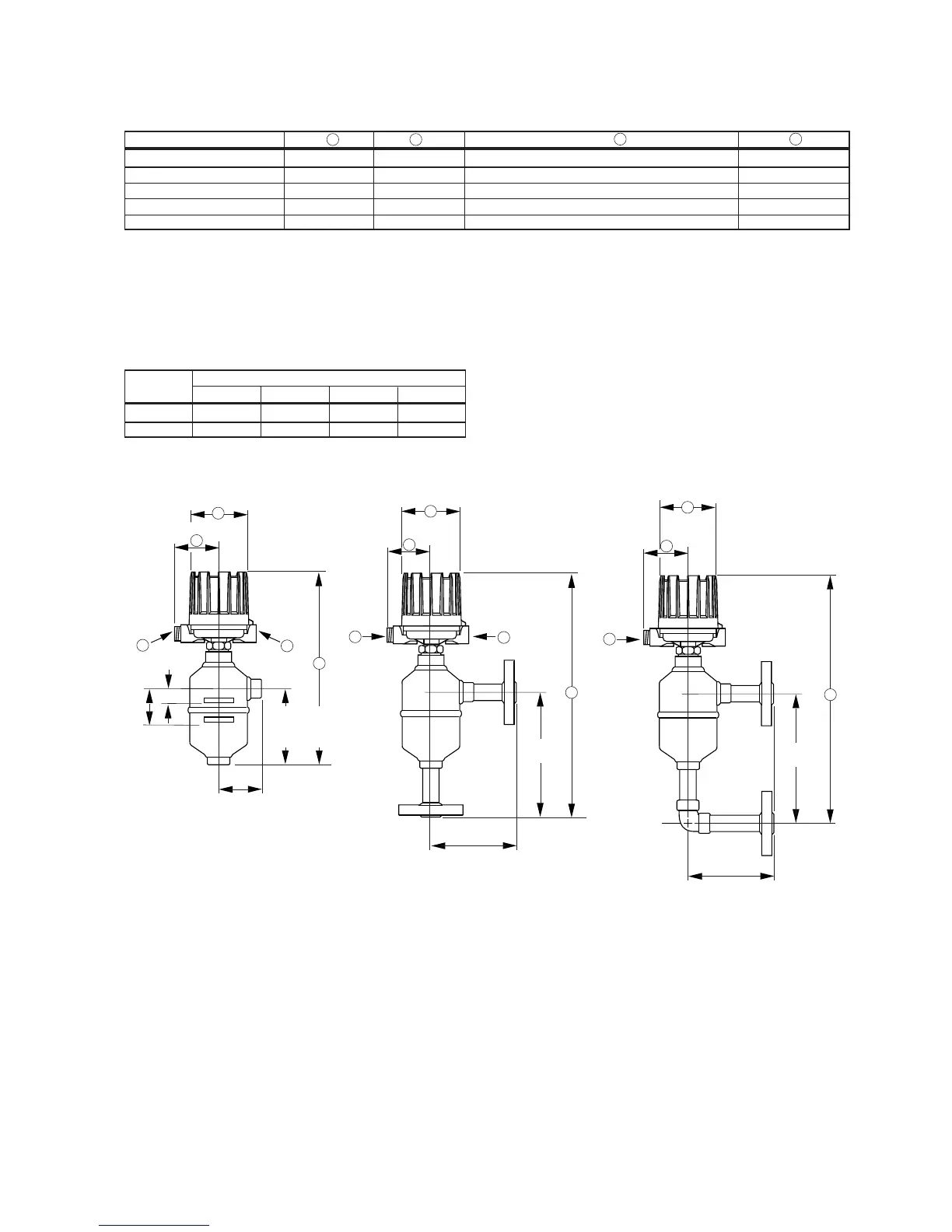

DIMENSIONAL SPECIFICATIONS in mm (inches)
OUTLINE DIMENSIONS IN mm (inches)
A
B
C
D
C
A
B
C
D
HL
LL
C
A
B
C
D
Dimensions Specific gravity
0.60 0.80 1.00 1.20
HL 30 (1.22) 43 (1.69) 49 (1.93) 54 (2.13)
LL 53 (2.10) 60 (2.36) 65 (2.56) 68 (2.68)
ACTUATING LEVEL DIMENSIONS VS.
SPECIFIC GRAVITY – mm (inches)
Threaded & Socket weld
upper side/bottom
Flanged
upper side/bottom
Flanged
side/side
159 ± 2 (6.26 ± 0.08)
for material code 1 & 2
163 ± 2 (6.42 ± 0.08)
for material code 4
250 ± 2
(9.84 ± 0.08)
250 ± 2
(9.84 ± 0.08)
83 ± 2
(3.27 ± 0.08)
160 ± 2
(6.30 ± 0.08)
160 ± 2
(6.30 ± 0.08)
Housing A B Entry C max D ➃
IP 65 (NEMA 4x) 151 (5.93) 109 (4.29) 1" NPT, M20 x 1.5 or PG16 (2 entries - 1 plugged) 459 (18.07)
NEMA 7/9 (IP 65) 143 (5.63) 100 (3.94) 1" NPT - 1 entry 453 (17.83)
CENELEC/BASEEFA (IP 66) 143 (5.63) 110 (4.33) 3/4" NPT OR M20 x 1.5 - 2 entries 507 (19.80)
NEMA 3R (IP 53) Pneumatic K 118 (4.64) 130 (5.12) 1/4" NPT - 2 entries 423 (16.65)
NEMA 3R Pneumatic J 118 (4.64) 110 (4.33) 1/4" NPT - 1 entry 423 (16.65)
➃ Allow ± 3 (0.12) tollerances on dimensions and allows 203 (8.00) overhead clearance for cover removal
