Magnetrol Pulsar R96 User Manual

10 41-621.1 HART
®
to Modbus
®
Adaptor Operating Manual

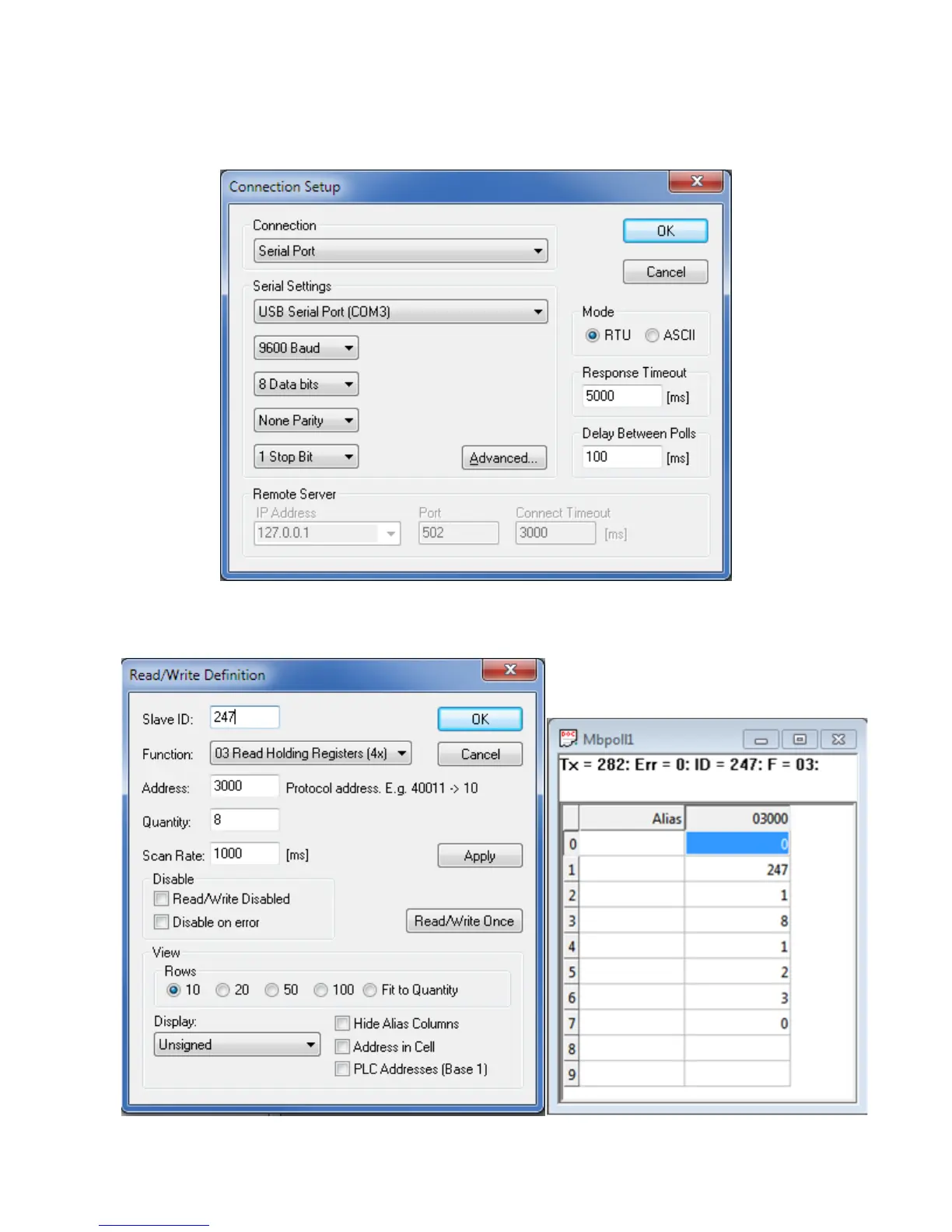

1.4.3 Select Connection\Connect from the menu bar, ensure that the connection settings are as
follows, and then click OK. Note that the USB Serial Port setting needs to match the port
number for the communication cable that is being used.
1.4.4 Open or click on an Mbpoll window, select Setup\Read\Write Definition from the menu
bar, ensure that the settings are as follows, and then click OK:

Magnetrol Pulsar R96 Specifications

General

Brand	Magnetrol
Model	Pulsar R96
Category	Transmitter
Language	English
