Operation
Pos: 48 / Techn ische Dokument ation/ Alle Ger äte/Über schr iften/ Überschri ften 1.1/T/ Überschri ft 1. 1: Tra nsport / Versch ieben v on H ubsäu len @ 12\mod_1231486358029_75.docx @ 300405 @ 2 @ 1
3.1
Handling / Moving the Columns
Pos: 49 / Techn ische Dokument ation/ Hebetech nik/ COLUMN LIFT/4 90801 RGE /BA/ Inhalt: 4908 Transp ort/Ver schiebe n (Bi lder) @ 1 2\mod_1231486938020_0.docx @ 300505 @ @ 1
Pos: 50 / Techn ische Dokument ation/ Papier korb/H ebetech nik/Inha lt: Tr ansport/V erschieb en (Text) RGE @ 12\mod_1231486726149_75.docx @ 300480 @ @ 1

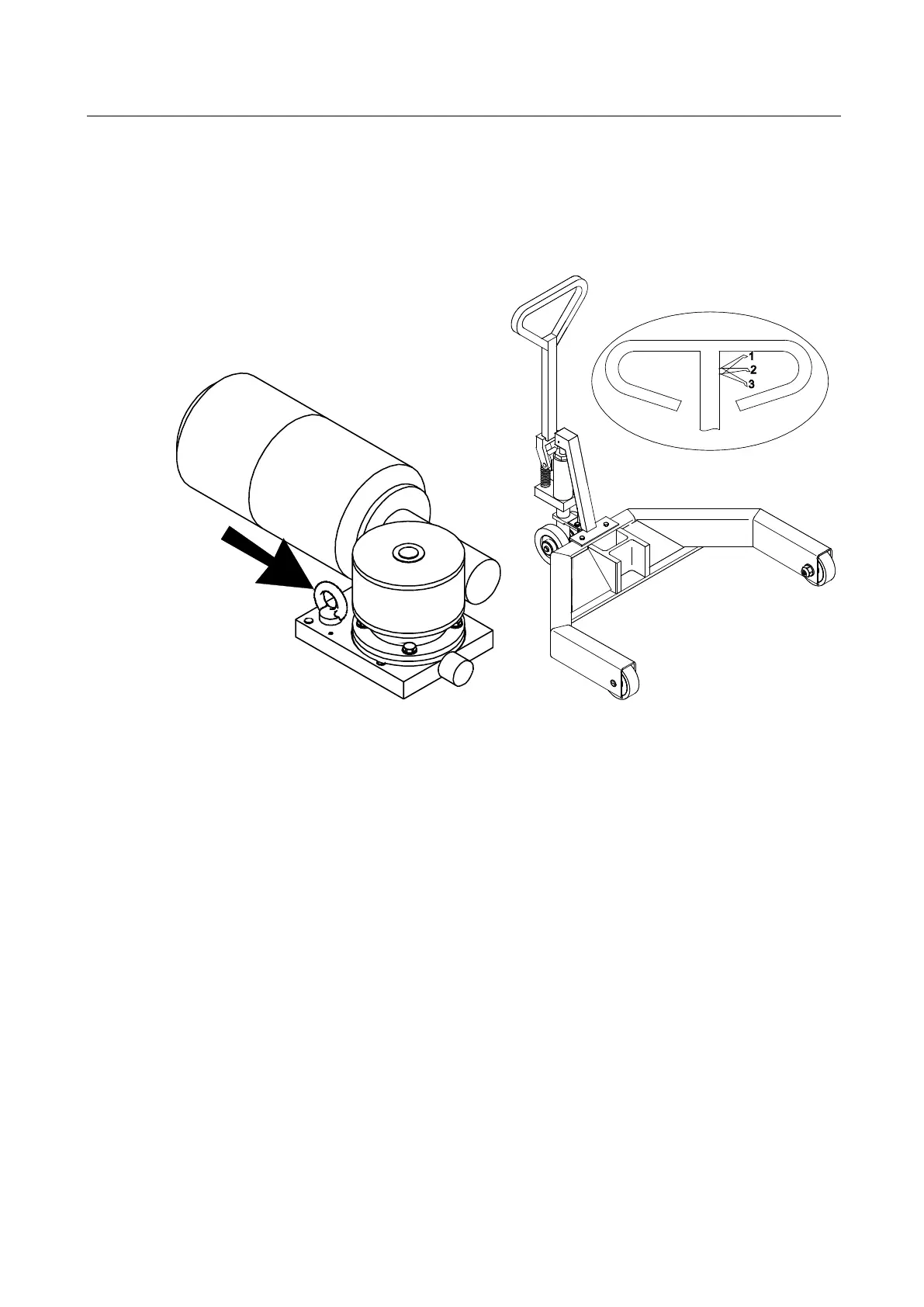

Screw a lifting-eye bolt M16 into the tap hole on the motor plate of the column. Insert a chain or
strap through the ring and lift the column using a hoist or forklift.
Close hydraulic valve by putting valve lever in position 3.
Pump with handle to raise the moving gear. Move column to desired position.
To lower the moving gear, open the hydraulic valve by putting the valve lever in position 1. The
column is ready for operation.
Position 2 is the neutral position.
