MAHA RGE - Transverse Beam for Semitrailers

22
BA490801-en
Pos: 103 /Te chnische Dok umenta tion/All e Geräte/ Über schrifte n/Über schrif ten 1.1/A/ Über schrift 1.1: A ufnahme traver se für Sattela uflie ger @ 6\mod_1178182588031_75.docx @ 91050 @ 2 @ 1
3.11
Transverse Beam for Semitrailers
Pos: 104 /Te chnis che D okum ent ati on/H ebe tec hnik/ CO LUMN LI FT/ 490 001 Radgr e ifer-H ebeb ühnen A lle/I nhalte/I nhalt: A ufnahm etravers e für S attel auflieg er (Bilder ) @ 15\mod _12 43954 4317 70_0.d ocx @ 385 024 @ @ 1
Pos: 105 /Te chnis che D okum ent ati on/H ebe tec hnik/ CO LUMN LI FT/ 490 001 Radgr e ifer-H ebeb ühnen A lle/I nhalte/I nhalt: A ufnahm etravers e für S attel auflieg er (Text) @ 1 5\mod_1243954387004_75.docx @ 384993 @ @ 1

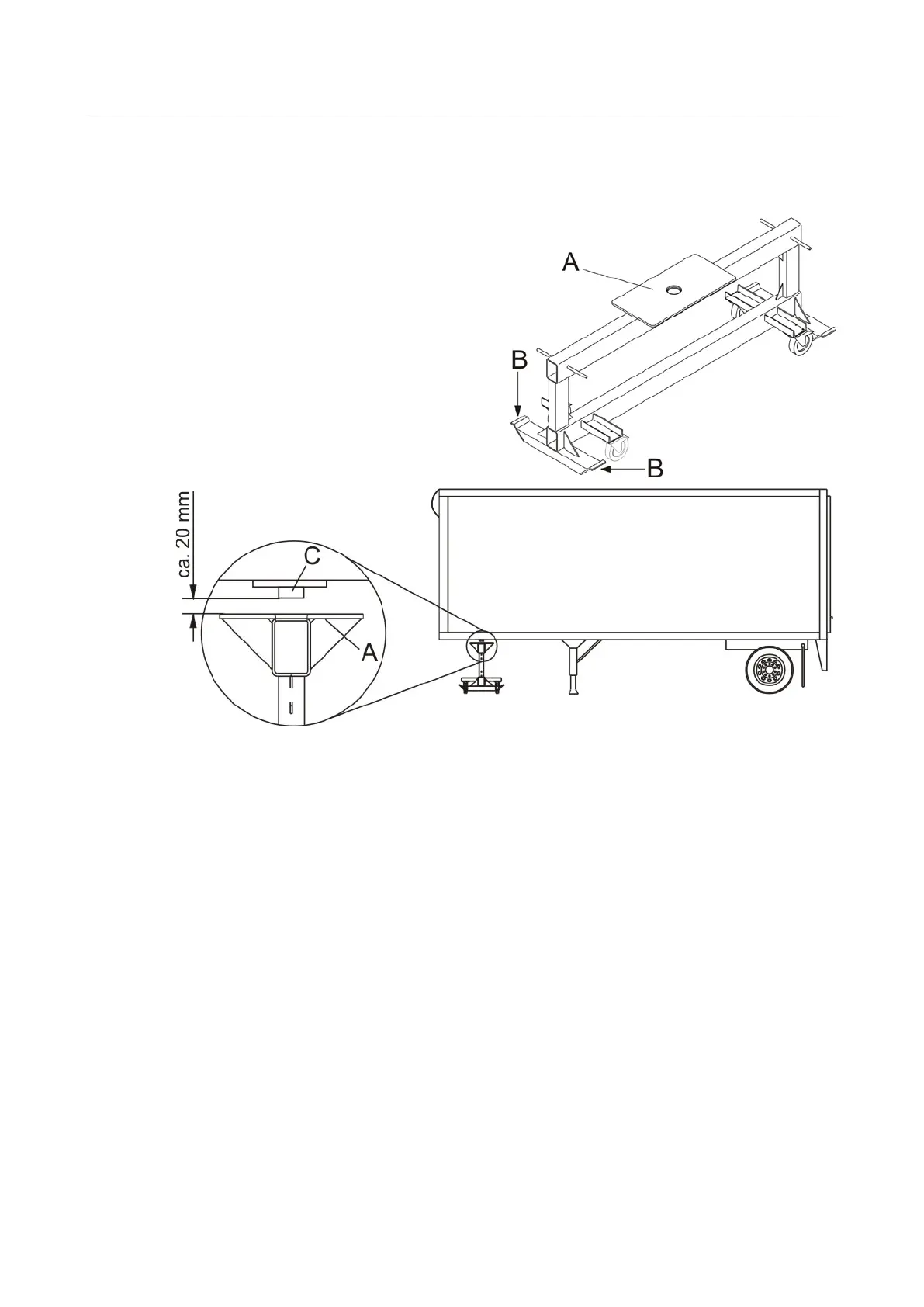

A Support plate with location hole for central pivot of semitrailer
B Lift points for support forks
1 Position transverse beam under central pivot (C) of semitrailer.
2 Lower semitrailer until central pivot is approx. 20 mm above support plate (A).
Do not load the rollers of the transverse beam with the weight of the semitrailer.
3 Check for alignment of central pivot and location hole. Adjust if required.
4 Position the columns.
5 Raise the semitrailer being sure the central pivot engages the location hole.
