MAHA RGE - Controls

16
BA490801-en
Pos: 63 /Techn ische Dokument ation/Alle Ger äte/Übersc hriften/ Überschrifte n 1.1/B/Über schrift 1.1: Bed ienelemente @ 1 3\mod_ 12379 75099 177_7 5.docx @ 35900 8 @ 2 @ 1
3.4
Controls
Pos: 64 / Techn ische Dokument ation/ Hebetech nik/ COLUMN LIFT/4 90801 RGE /BA/ Inhalt: 4908 Bedien elemen te (Bild er) @ 25\mod_1319463749099_0.docx @ 1065861 @ @ 1
Pos: 65 / Techn ische Dokument ation/ Papier korb/H ebetech nik/Inha lt: Bed ienelem ente RGE ( Text) @ 12\mod_1231490810014_75.docx @ 300760 @ @ 1

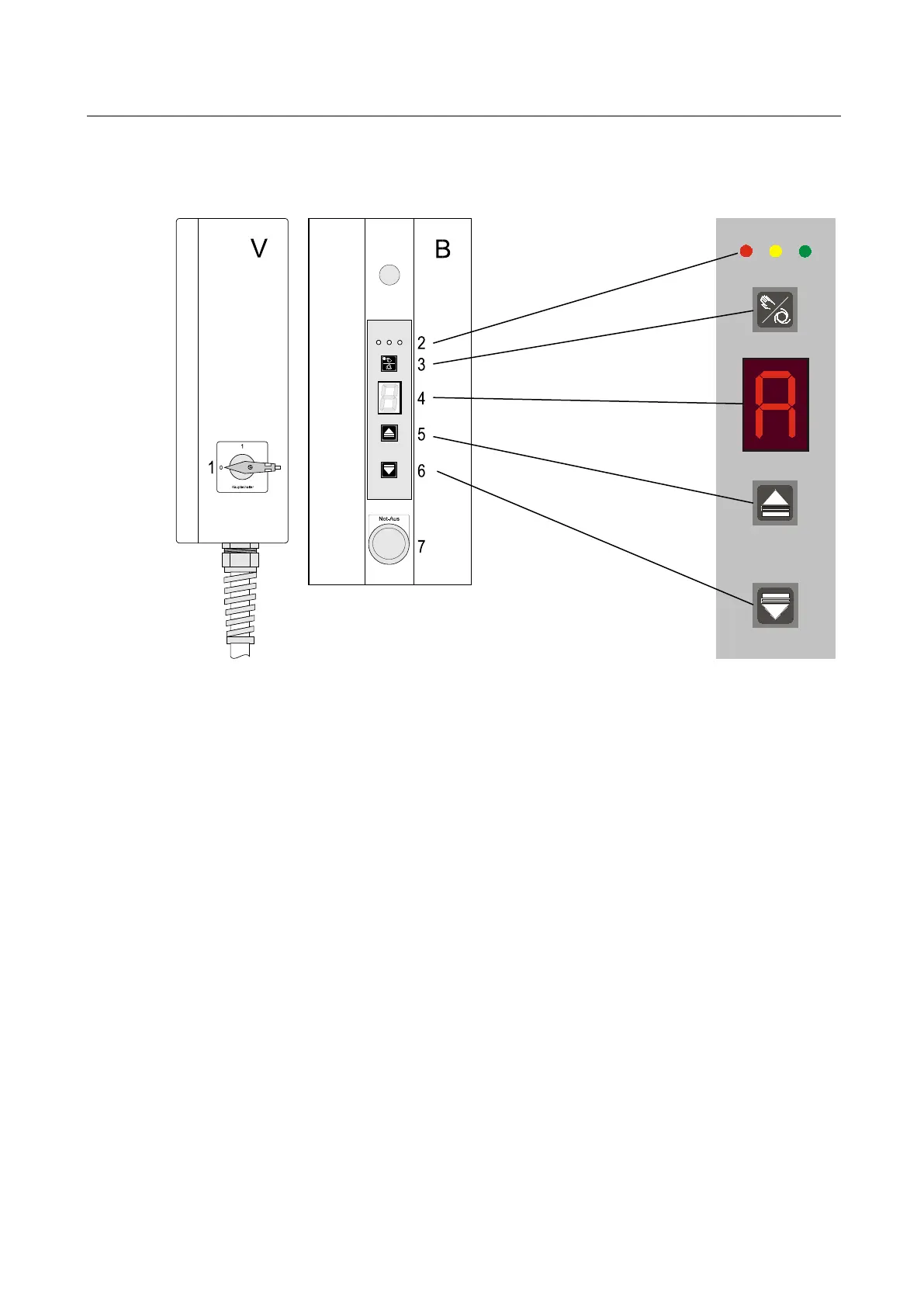

V
Power Supply Unit
B
Control Unit
1
Main Switch
2
LED Display
Indicates operating and error states.
3
Selector Button (on Control Unit)
Use this button to select between: Automatic / Single / Group mode
4
Seven-Segment Display (on Control Unit)
Indicates operating and error codes.
5
RAISE Button (on Control Unit)
Press and hold this button to raise the lift. Lift stops once button is released or upward travel
stop is reached.
6
LOWER Button (on Control Unit)
Press and hold this button to lower the lift. Lift stops once button is released or downward
travel stop is reached.
7
Emergency Stop Button (on Control Unit)
In case of emergency press this button to disconnect the lift from the mains supply.
Pull out the button to make the lift ready for operation.
